The horizontal cabinet is designed to keep the dies used in the cutting department tidy, but not only. The height and combination of the drawers can be customised according to the specific needs of each customer, making the cabinet suitable for each component used in the department. In this case, the horizontal cabinet originally designed to hold cutting dies has been customised to hold cones and spools of thread, so that all those in the department can be stored neatly.
Thread cones, such as those from brands like Gütermann or Serafil, can be stored horizontally or vertically. With the horizontal method, the spools lie flat and the colour is immediately recognisable; with the vertical method, however, the spools stand upright and the colour code is immediately visible at a glance.
In the cabinet, the height of the drawers is modified and dedicated brackets are inserted that secure the spools and ensure that they do not move during drawer opening and closing operations.
Where did the demand for the horizontal cabinet with thread cones and spools come from?
The request for this special cabinet came from our customers, who needed to keep the thread used in their department tidy and protect them from light and dust.

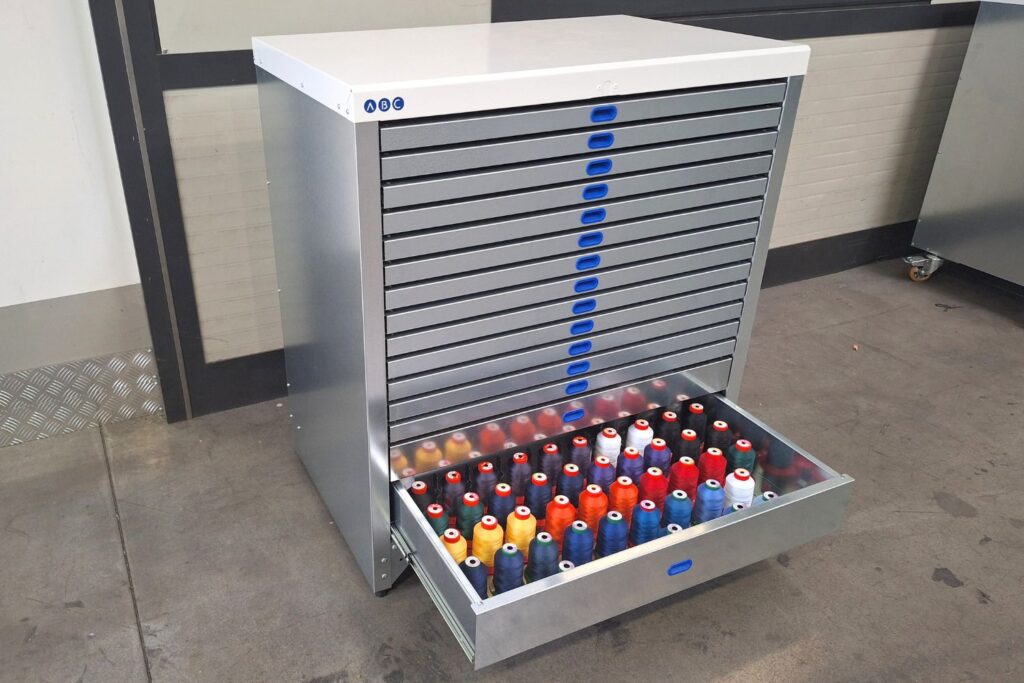

In detail, a renowned shoe manufacturer in the Veneto region, Italy asked us for a custom-made cabinet to keep the thread spools tidy. The cabinet, which is 114 cm wide and 140 cm high (model ref. CO27_12_03), has had its drawer configuration modified to include 9 triple drawers for storing spools of thread in an upright position.

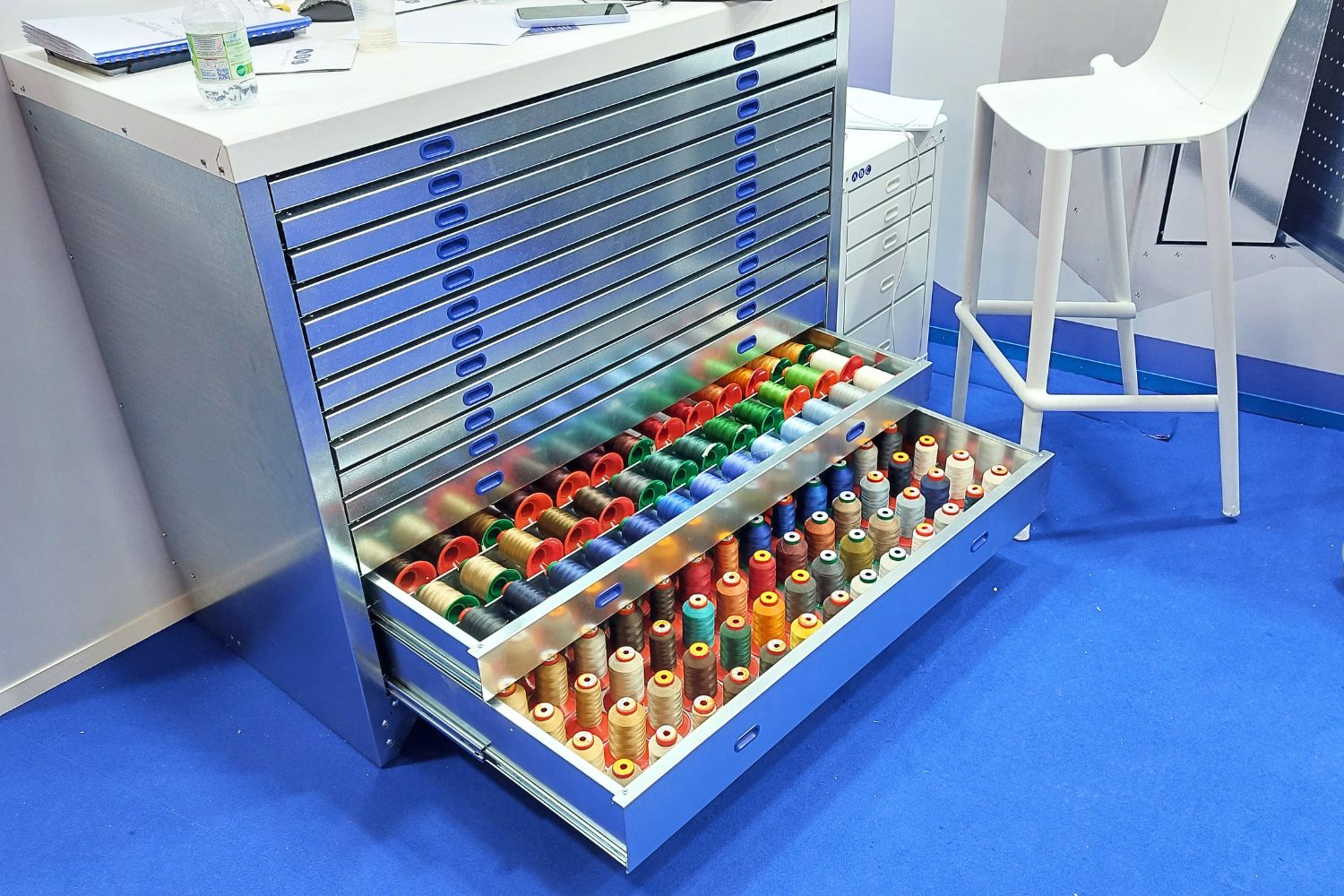

On the other hand, a French leather goods manufacturer asked us to modify the cabinet by inserting a special support to manage the spools horizontally in the drawer, so that they can be easily identified. In this case, we modified the cabinet with width 145 and height 100 cm (model ref. CO18_15_03), inserting 9 double drawers.
In both cases, the spools are firmly anchored in the drawer and do not move when opening and closing the drawer.
These set-ups have been designed for cones with a diameter of 74 mm and a height of 94 mm. If you use different cones, you can design a drawer configuration to suit your needs.
What are the advantages of the cabinet with thread cones and spools holder?
The horizontal cabinet with thread spools holder gives many advantages to the operator in the cutting department:
- Preserving and tidying thread spools such as Gütermann and Serafil
- Handling many spools in a compact space
- Finding the right colour in no time
Materials and dimensions
The horizontal cabinet is made of galvanised steel and has a durable white painted top shelf. On request, it can also be fully painted.
The external dimensions of the cabinet remain unchanged; the arrangement of the drawers is modified according to the needs and storage mode.
The special drawer configuration is also available on the model with castors, which can be easily moved on a flat surface from one department to another.

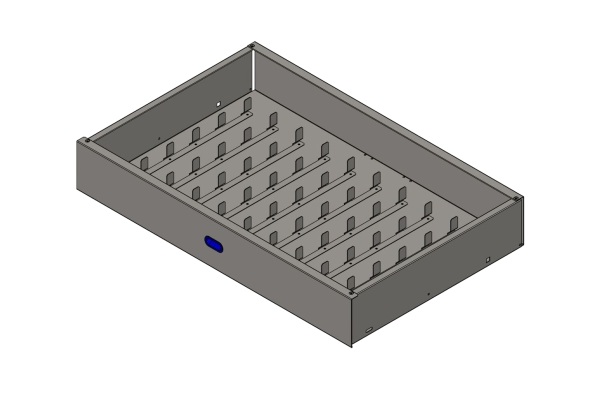

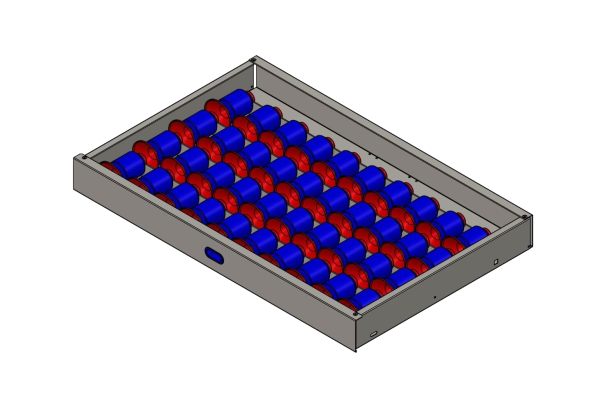

In the case of the horizontal cabinet with thread cones and spools holder, double drawers and a divider with individual stations are inserted to hold each thread spool. On the other hand, in the case of the vertical cone and spool drawer holder, triple drawers are inserted with metal strip cone holder that take the full depth of the drawer to hold each thread spool.
Each drawer is equipped with slides and blue plastic handles for effortless opening, even when fully loaded.
The cabinet is easy to position. It is raised off the floor and, in the case of the classic model, is moved around the department using a pallet truck or forklift, whilst the model with wheels can be easily moved by pushing it from one department to another without the need for additional equipment.
It is fitted with the Stop&Go system, which allows only one drawer to be opened at a time, improving safety for operators, and there is no need to secure it to the floor or wall.
Configuration of drawers and storage
Horizontal set-up with double drawers
| Code | Internal drawer size L x W | N. positions |
|---|---|---|
| CO_PCO_04_02 | cm 28 x 51,5 | 12 |
| CO_PCO_07_02 | cm 53 x 51,5 | 28 |
| CO_PCO_09_02 | cm 79 x 51,5 | 40 |
| CO_PCO_12_02 | cm 104 x 51,5 | 52 |
| CO_PCO_15_02 | cm 137 x 51,5 | 72 |
Vertical set-up with triple drawers
| Code | Internal drawer size L x W | N. positions |
|---|---|---|
| CO_PCV_04_02 | cm 28 x 51,5 | 18 |
| CO_PCV_07_02 | cm 53 x 51,5 | 36 |
| CO_PCV_09_02 | cm 79 x 51,5 | 60 |
| CO_PCV_12_02 | cm 104 x 51,5 | 78 |
| CO_PCV_15_02 | cm 137 x 51,5 | 108 |
For whom is the horizontal cabinet with thread cones and spools holder developed?
The horizontal cabinet for cones and spools is ideal in any business that uses a large quantity of thread spools, such as Gütermann or Serafil, and needs to keep them in order. It can be placed in the production or sample department of any leather goods, small leather goods, shoe or saddlery factory.
The rack allows for the tidy and protected from light and dust handling of the thread spools by having them within easy reach in the drawers.
The combination of the drawers can be customised to suit each need, and a different combination of drawers can also be inserted, e.g. one part single to handle cutting dies and one part triple to insert thread spools.
Each cabinet is custom-built according to the specific needs of each customer.
Discover all available models of the horizontal cabinet, with height of 100 or 140 cm to customise by combining the drawers for cones and spools of thread.
If you, too, want to keep your thread spools in order, install the cabinet with thread cones and spools holder in your workshop.
Perseo Light: an alternative to the horizontal cabinet
If you have a large number of cones and spools in your department, you might also consider installing Perseo Light, the compact automatic warehouse, to automatically manage all the components in your workshop.
The storage system takes up the space of a single shelf but offers many more benefits:
- Items protected from light and dust
- Reduction search times
- Exact stock control
Discover our solutions to improve workflow and efficiency in your department and keep your cones and spools of thread tidy and protected from light and dust.
