Horizontal Cabinet
for Cutting dies and Components

The horizontal cabinet is specially designed to handle frequently used cutting dies. When inserted into the cutting department, the cabinet replaces the existing work surface. The cutter has a sturdy work surface in white painted steel and the drawers containing the die sets used in production.

The cutting die is essential in leather processing, whether it is used for cutting, for the net or for the exact trimming as in leather goods or footwear.

Characteristics

Dedicated drawers
H=35 mm

Top shelf
painted steel

Ergonomic
plastic handles

Full-extension
ball bearing slides

horizontal-cabinet-cutting-dies-18-drawers

horizontal-cabinet-cutting-dies-drawer-open

Our special feature? The drawer dedicated to the cutting dies

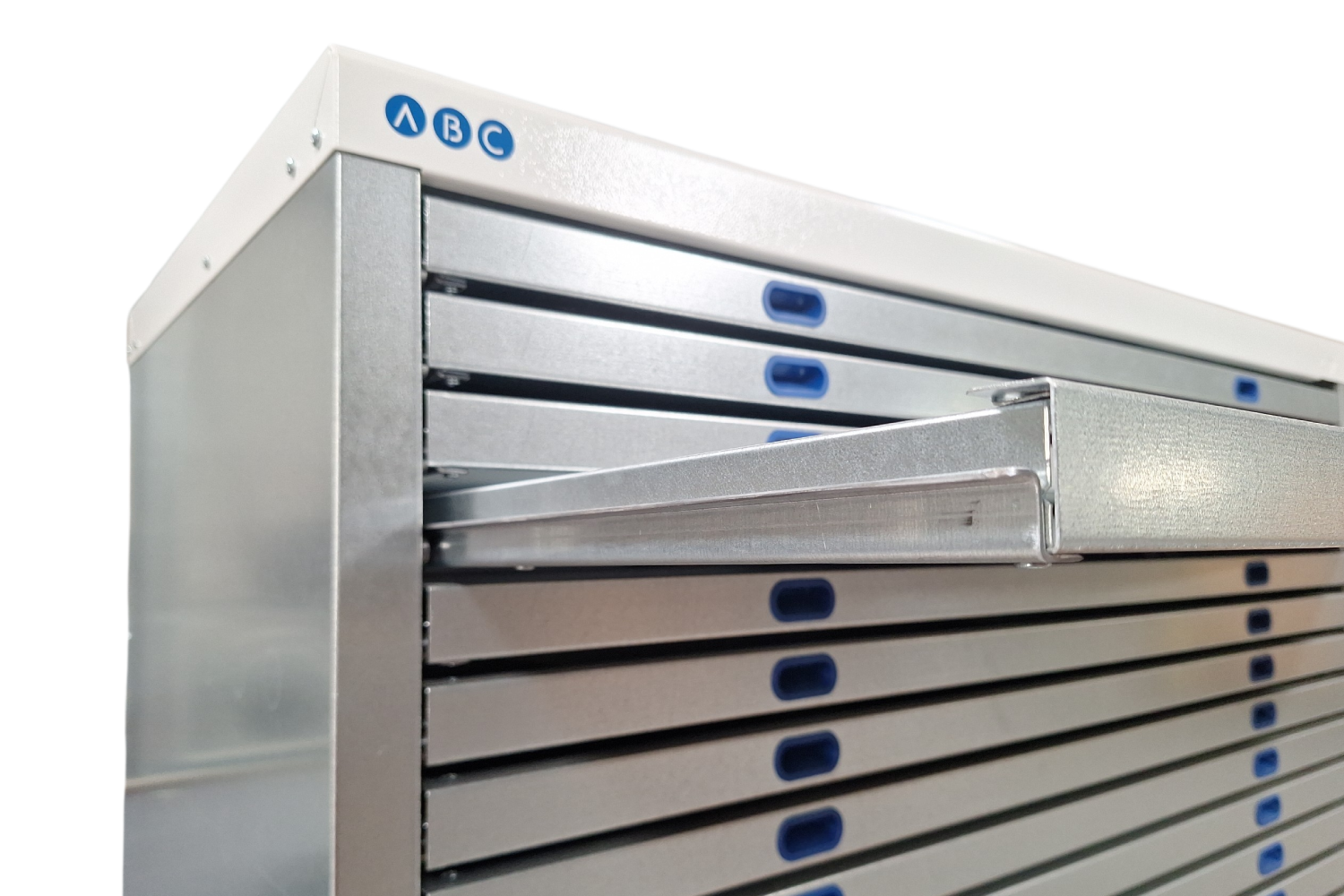

The horizontal cabinet drawer is specially designed for the cutting die used in the leather goods, shoe or belt factories.

It has been carefully designed down to the smallest detail and is equipped with full-extension ball bearing rail guides that guarantee smooth running even when fully loaded.

The available range of horizontal cabinet has drawers with a height of 35 mm, which allows all types of dies to be stored without superpose.

Different widths are available, designed for every type of die, even the largest ones, used for example in the belt or saddlery factory.
The most used model, to be inserted next to the press machine, has a width of 114 cm and a capacity of 10 m² (ref. article code CO18_12_01).

Discover the full range available.

Where is the horizontal cabinet used?

The horizontal cabinet is used in all those companies in the leather industry that cut with dies, but not only.
In particular:

in leather goods, for the production of bags or belts
in small leather goods, for the production of wallets or watch straps
in shoe factory
in saddlery, for riding or automotive
in textile sector, for cutting dies used for men’s formal wear

Where to place the horizontal cabinet for cutting dies?

The ideal position for the horizontal cabinet is in the cutting department, next to the press machine to reduce the time required to pick up the dies.

In the case of larger companies, the dies are placed in the storage department. An operator will only make available to the cutters the dies that will be used during the work shift.

Materials and dimensions

All cabinet are made of galvanised steel, sturdy and durable. The top shelf is made of galvanized steel painted white, which is durable for all types of work.

The depth of all models is 57 cm.

The height is 100 or 140 cm, depending on the number of drawers.

We have developed five different widhts: 36, 62, 88, 114 and 145 cm (see product data) depending on the type of die used in the factory.

Each drawer has a maximum capacity of 30 kg and ball guides with total extraction.

Advantages

SAFEGUARD DIES

Inside the drawers

INCREASE PRODUCTIVITY

Immediately find the cutting dies useful for production

EASY TO POSITION

With forklift or pallet truck

Can the horizontal cabinet be customised?

You can define the combination of drawers by inserting drawers of different heights to organise different equipment and components.

We are a manufacturer and if you have specific requirements, it is possible to request a custom-made horizontal cabinet.

Some examples are:

For a leather goods manufacturer, we developed a cabinet custom-made for bulky cutting dies up to 180 cm long.

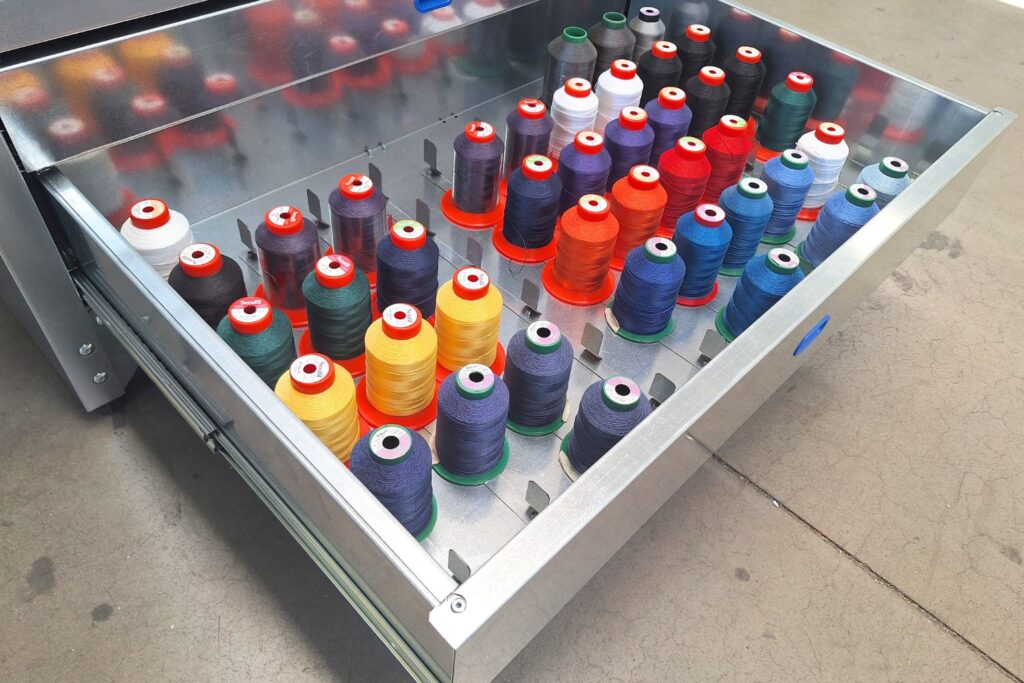

For a leather goods manufacturer of luxury leather components, we developed a cabinet for cone and spools holder.

Discover the category Dies Storage custom-made already made.

Product Data

Horizontal cabinet with 18 drawers of 35 mm

Code	L x W x H	Capacity
CO18_04_01	cm 36 x 57 x 100	m² 2,5
CO18_07_01	cm 62 x 57 x 100	m² 5
CO18_09_01	cm 88 x 57 x 100	m² 7,5
CO18_12_01	cm 114 x 57 x 100	m² 10
CO18_15_01	cm 145 x 57 x 100	m² 13

Drawer’s max. load: 30 kg

Horizontal cabinet with 27 drawers of 35 mm

Code	L x W x H	Capacity
CO27_04_01	cm 36 x 57 x 140	m² 3,7
CO27_07_01	cm 62 x 57 x 140	m² 7,5
CO27_09_01	cm 88 x 57 x 140	m² 11,2
CO27_12_01	cm 114 x 57 x 140	m² 15
CO27_15_01	cm 145 x 57 x 140	m² 19,5

Drawer’s max. load: 30 kg

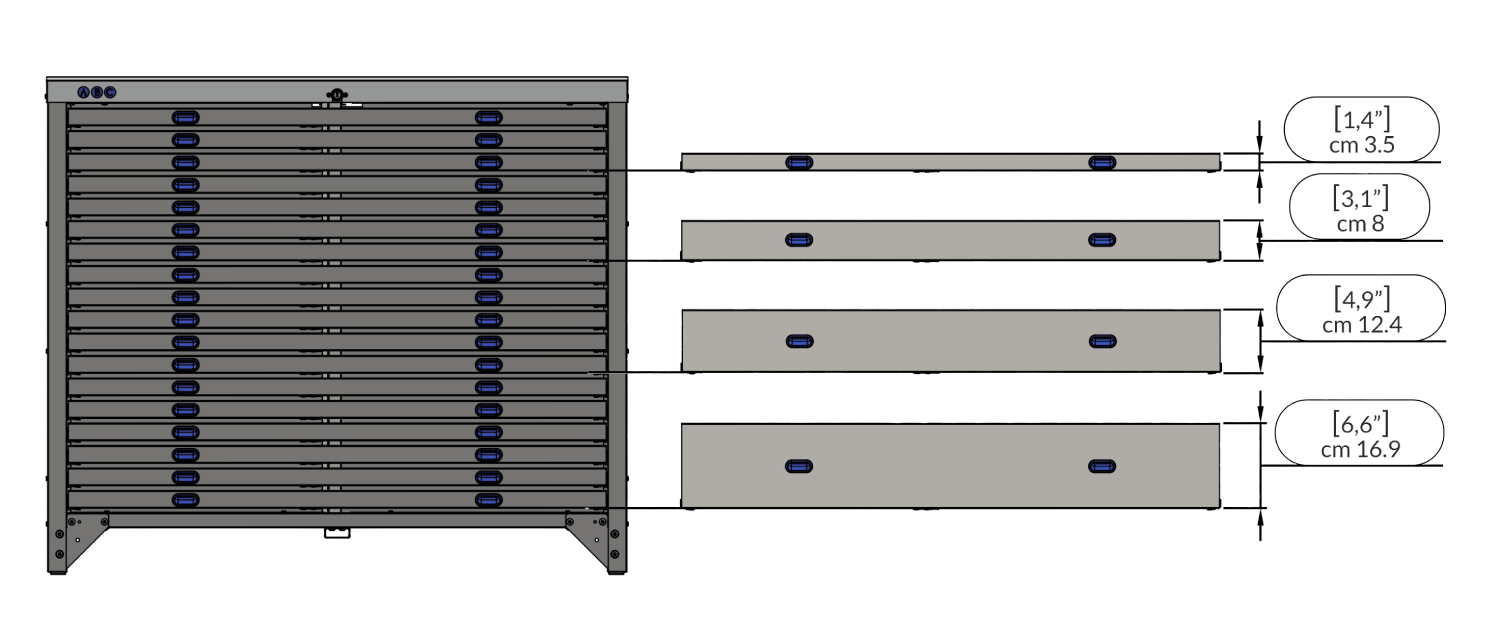

Drawers Combination

In the horizontal cabinet, it is possible to replace a 35 mm drawer
with higher drawers of a greater height (as shown in the table) to hold accessories or higher objects.
