Tilting
Work Table

The work table with tilting top is specially designed for checking leathers before cutting and preparing articles.
It can be placed in any leather business such as leather goods, small leather goods, belt or shoe factories.

The table can also be supplemented with some accessories to suit any customer’s needs.

Characteristics

Adjustable top shelf
with 5 cm pitch

Maximum shelf
inclination of 24°

Customisable
with accessories

Load capacity
up to 300 kg

What makes the work table unique?

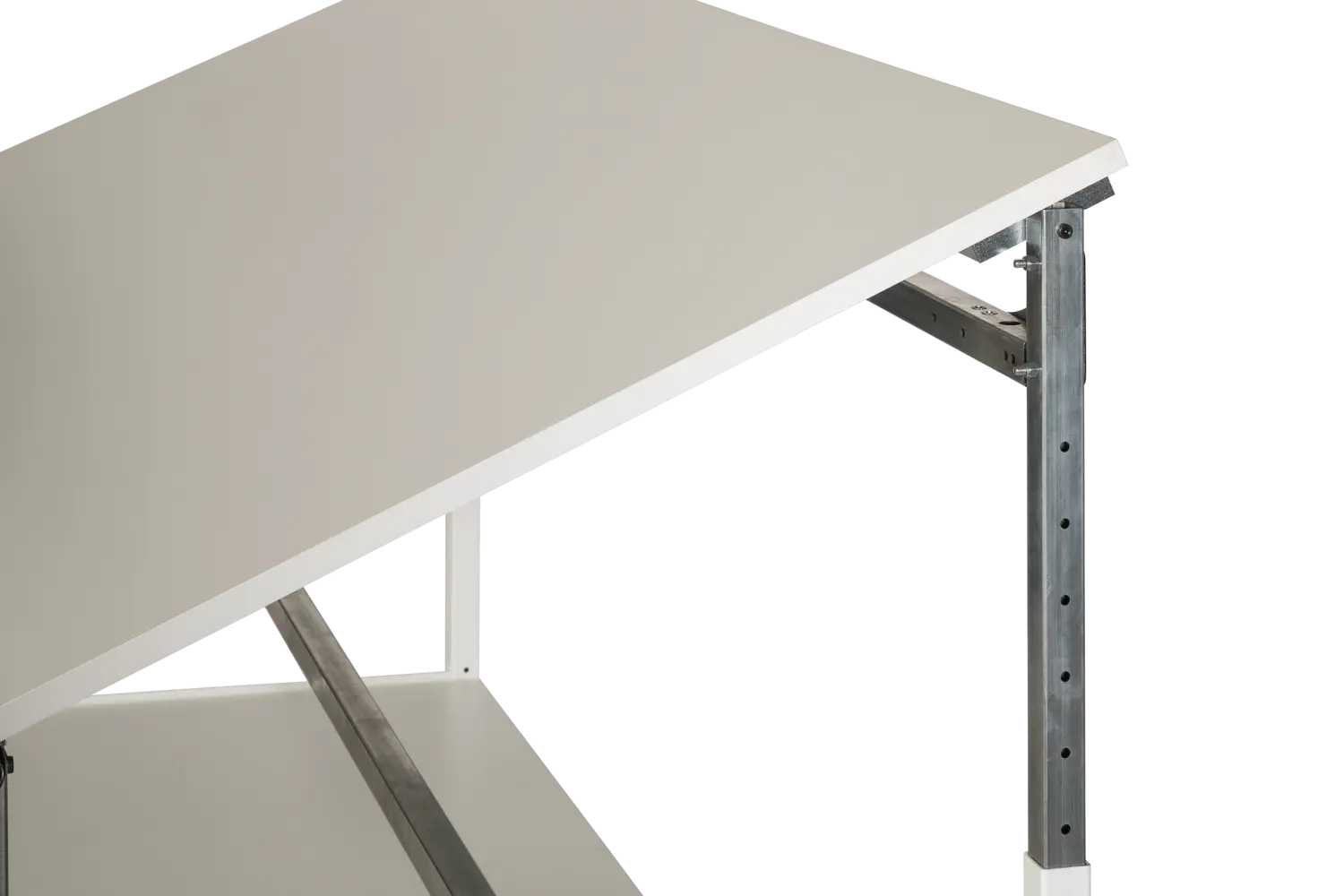

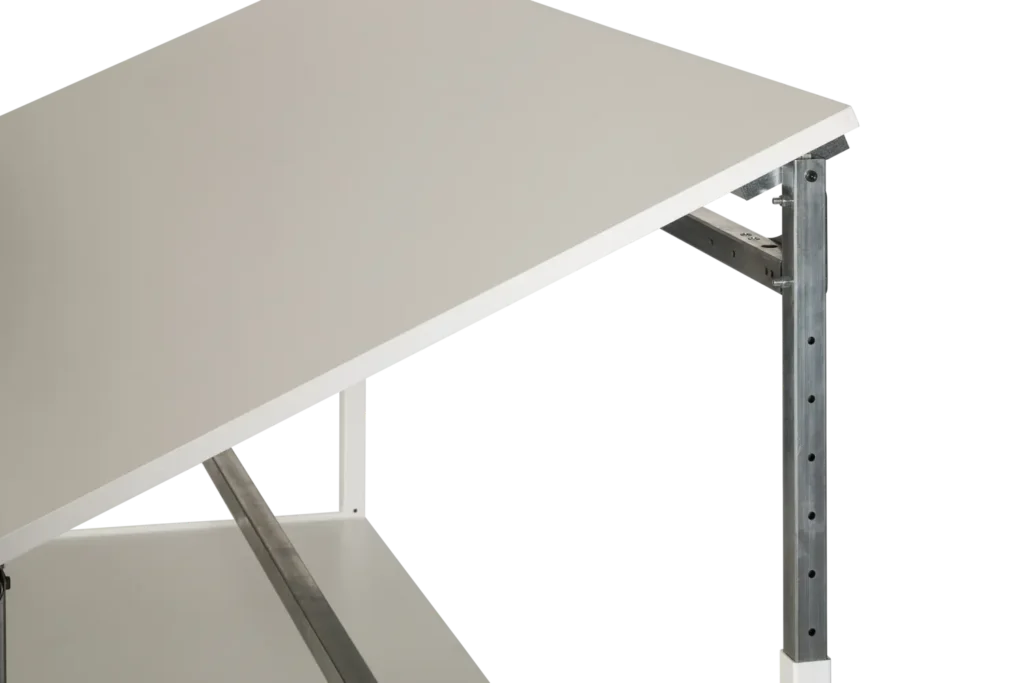

The tilting and height-adjustable top shelf

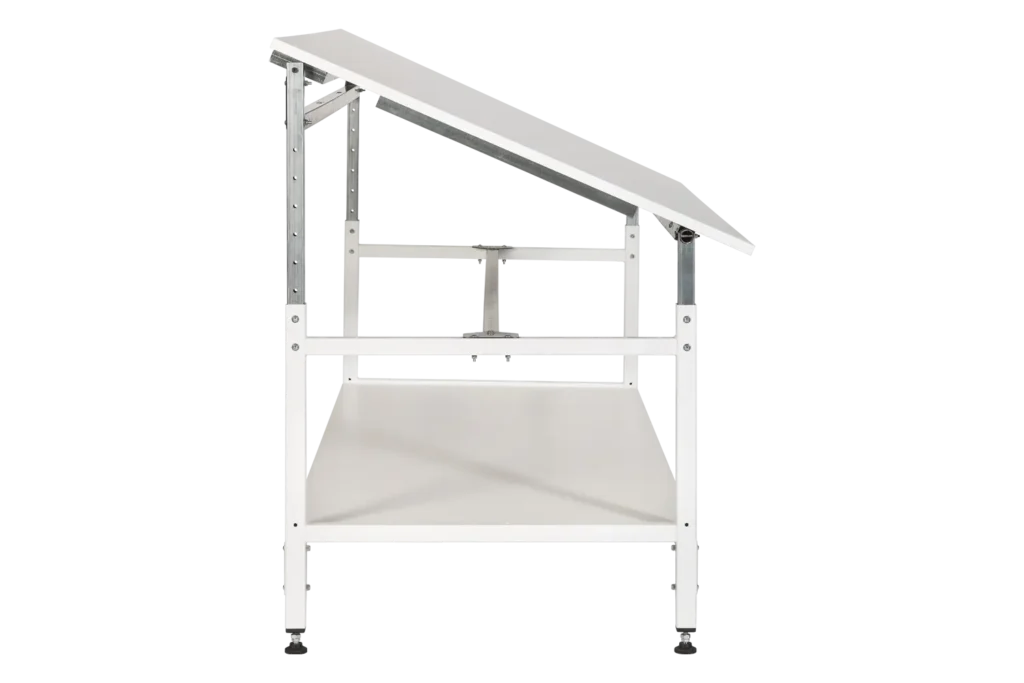

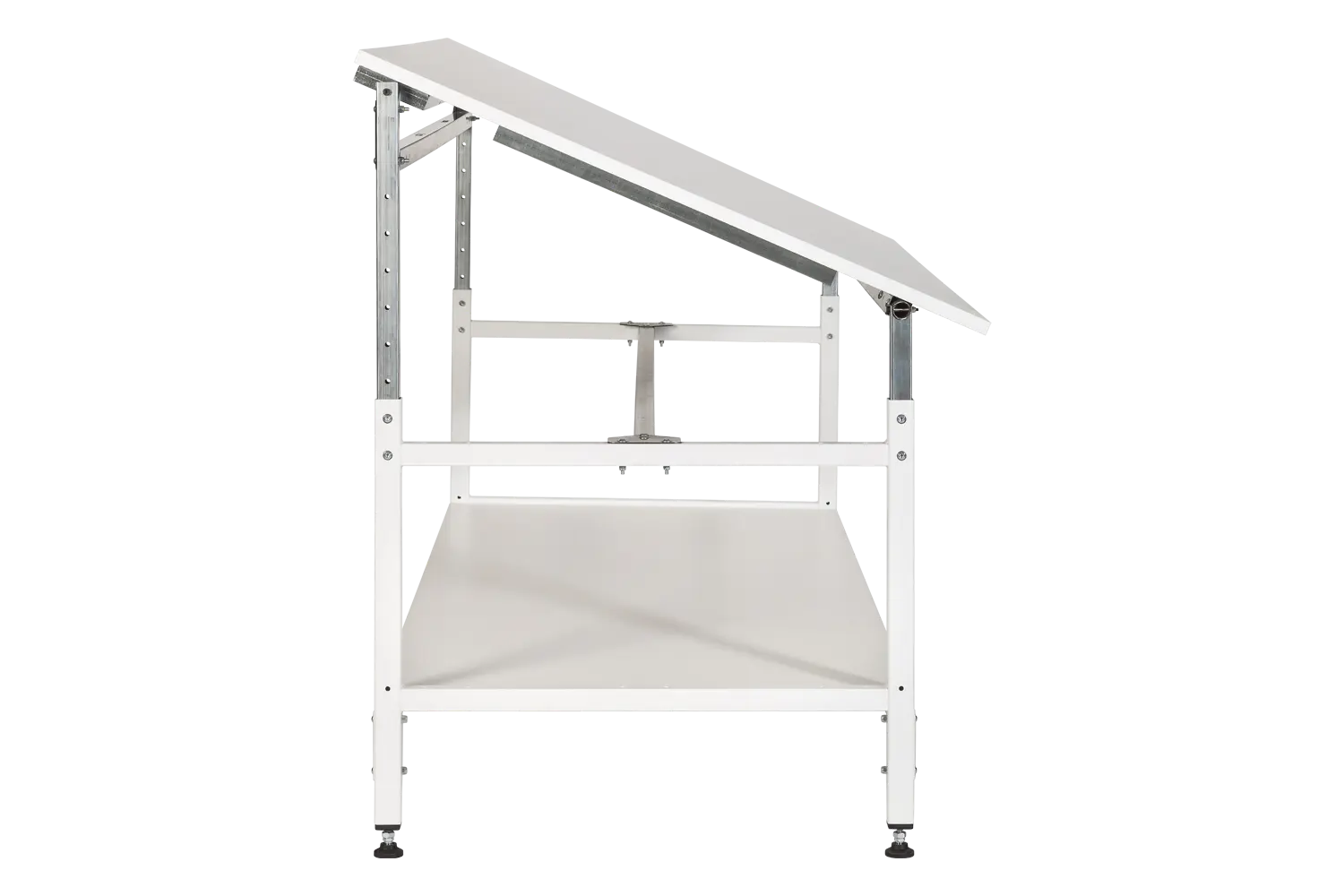

The work table has a height-adjustable top shelf that can be tilted to suit the operator and the type of operation performed.

The minimum height of the bench is 77 cm, while the maximum height is 110 cm. The top shelf can be tilted up to a maximum of 24°.

The table also has a lower shelf, of dimensions 177 x 73 cm,used mainly for storing components or equipment used in production.

Where is the work table used?

The work table is a durable table top and can be placed in any company in the leather world, of any type and size.

The ideal position in which it is placed is in the warehouse department to check the leather before it is used in production or in the modelling department to check it before the samples are made.

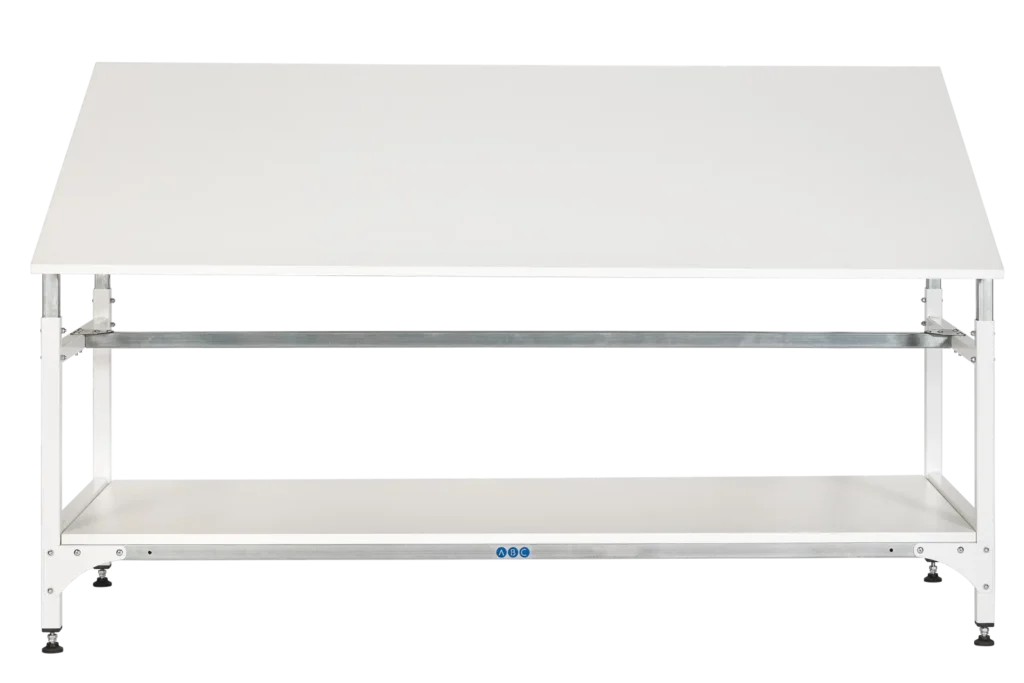

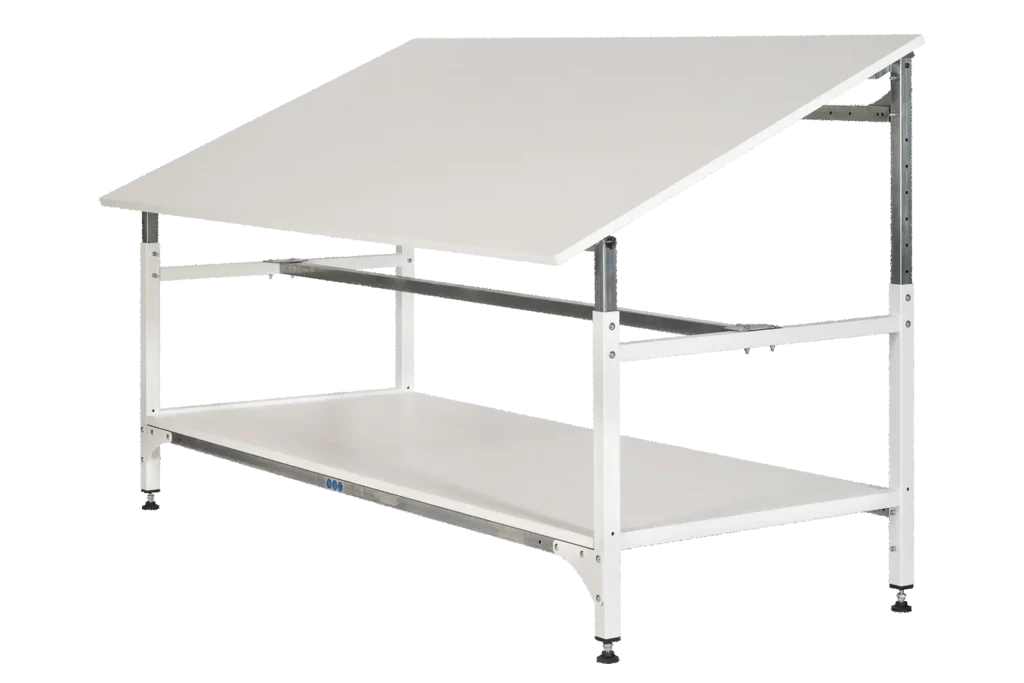

Materials and dimensions

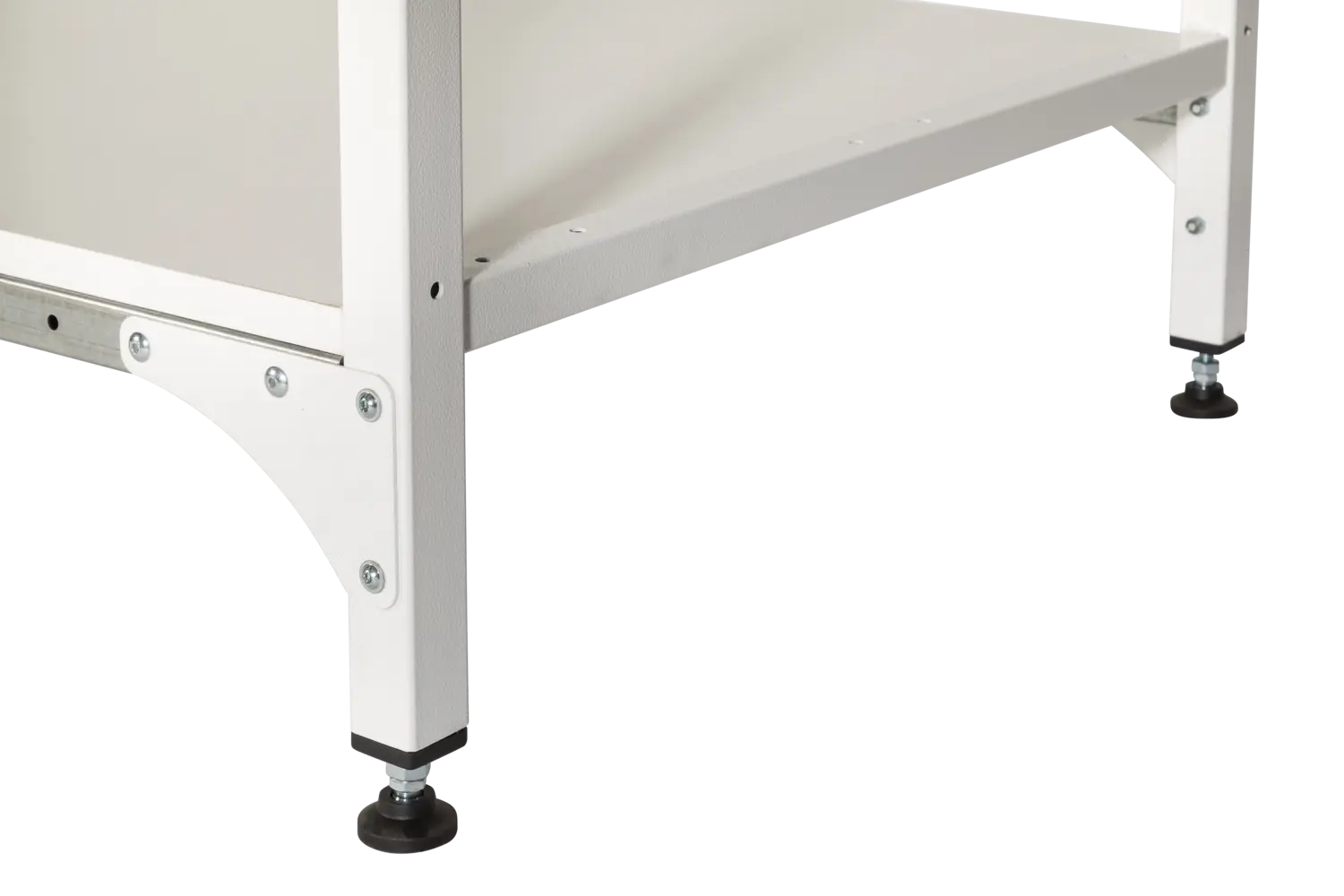

The work table has a white painted steel structure, while the shelves are made of white laminated melamine wood, making it resistant and durable for each stage of processing.

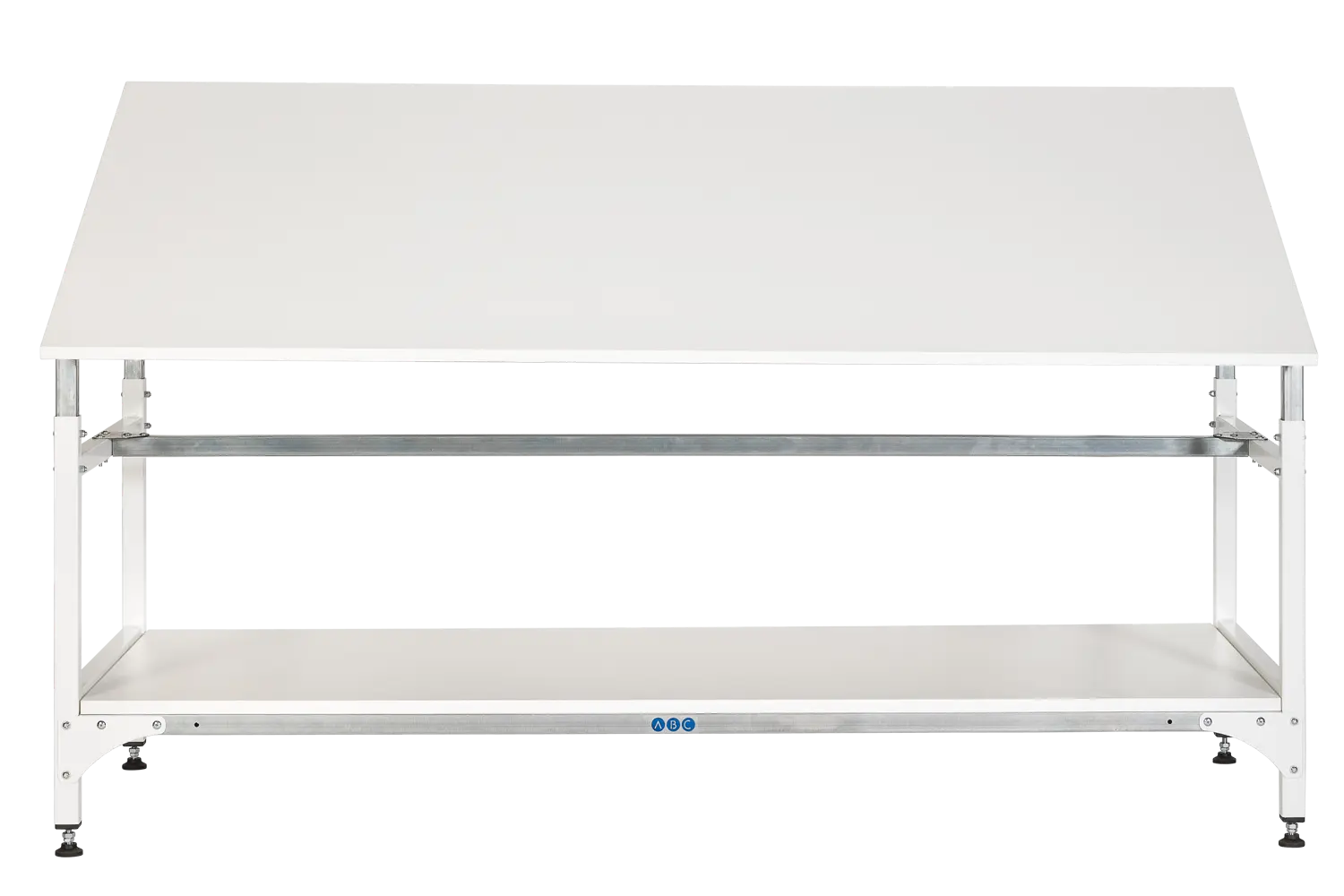

The length is 185 cm, the depth is 93 cm and the height is adjustable from 77 to 110 cm (see product data).

The maximum load capacity of the bench is 300 kg.

It is supplied in assembly kit, on a pallet, to optimise shipment worldwide.

Advantages

ADJUSTABLE HEIGHT

Which adapts to each operator

TILTING TOP SHELF

Ideal for checking hides before processing

VERSATILE USE

Suitable for any need, customisable with accessories

lamp-holder-work-table-with-adjustable-temperature

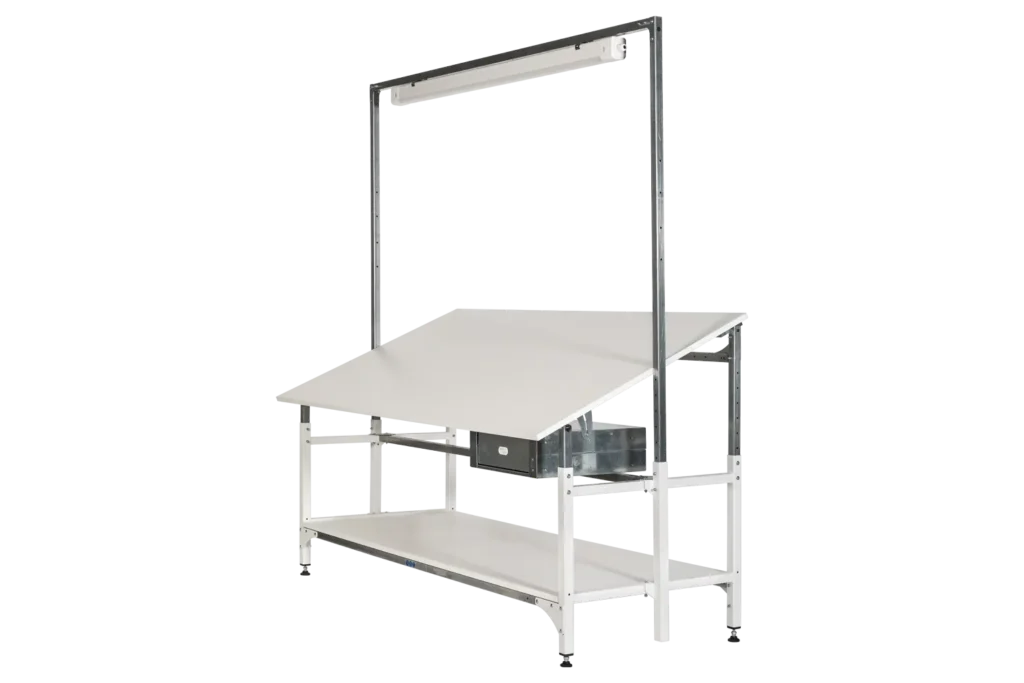

Work table accessories

The work table can be completed with some accessories such as:

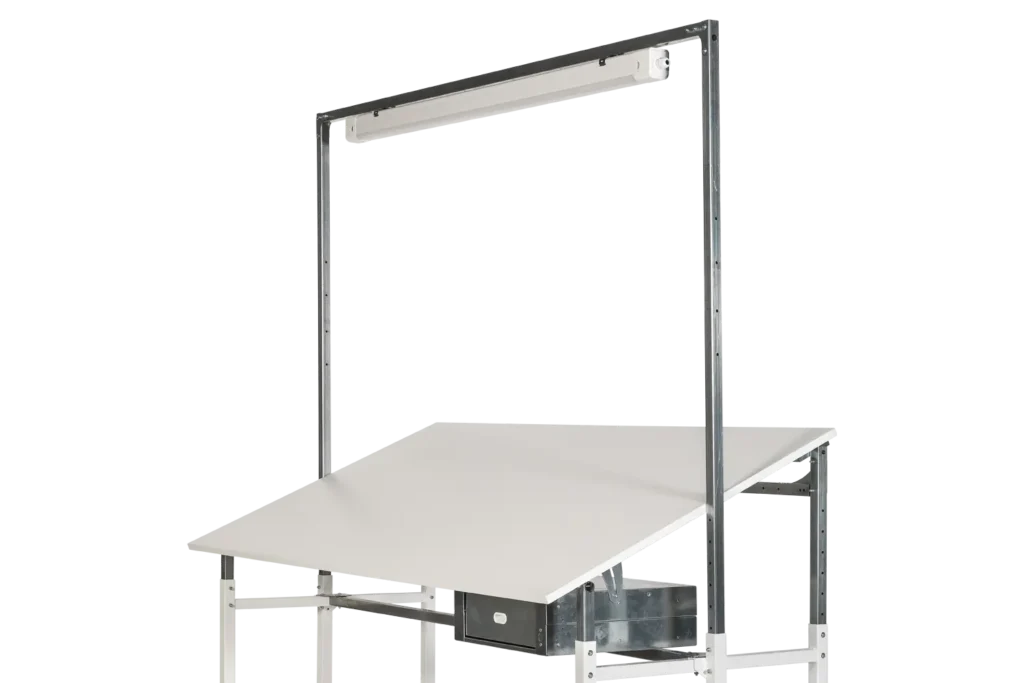

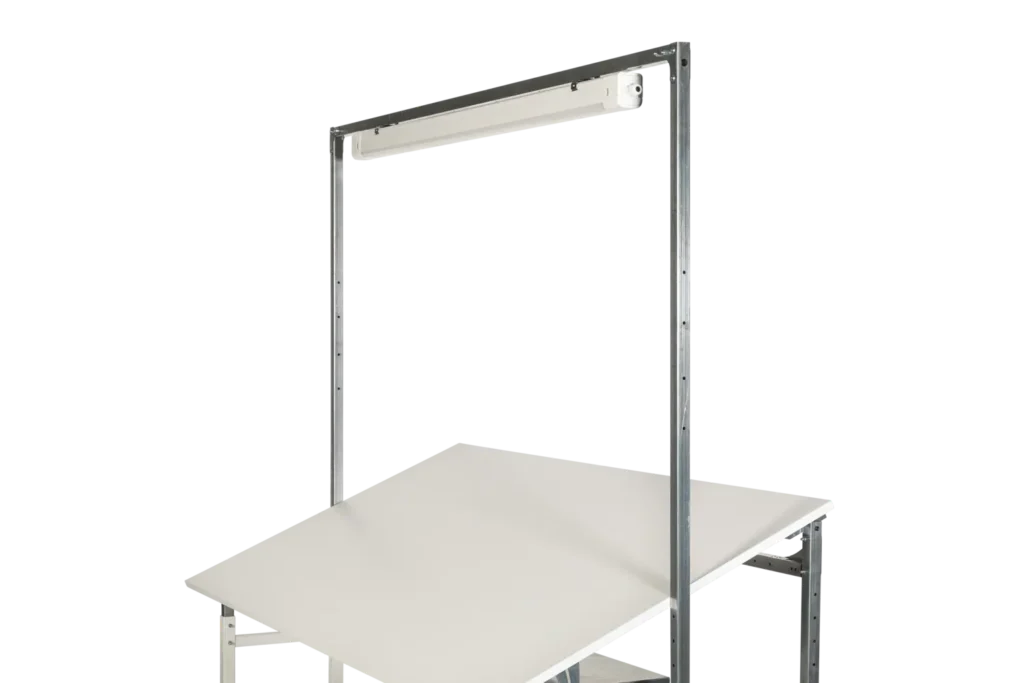

Lamp holder, a white painted steel structure fixed to the frame structure and holds the lamp. The lamp holder can be adjusted in height in the same way as the top shelf with a 5 cm pitch. It can be moved 50 cm in height by having it more or less close to the worktop. The position is always perpendicular to the floor.
LED lamp with adjustable temperature 3000 (warm light), 4000 (neutral light) or 6500 (cold light) K to have in the same lamp a cold, neutral or warm light depending on the type of material to be analysed.

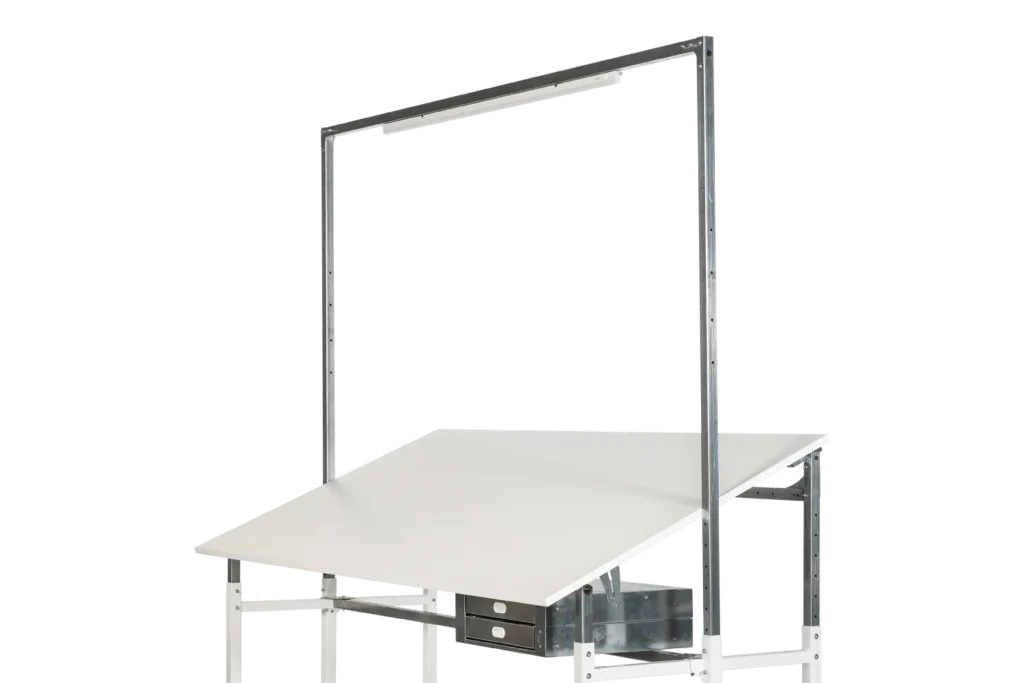

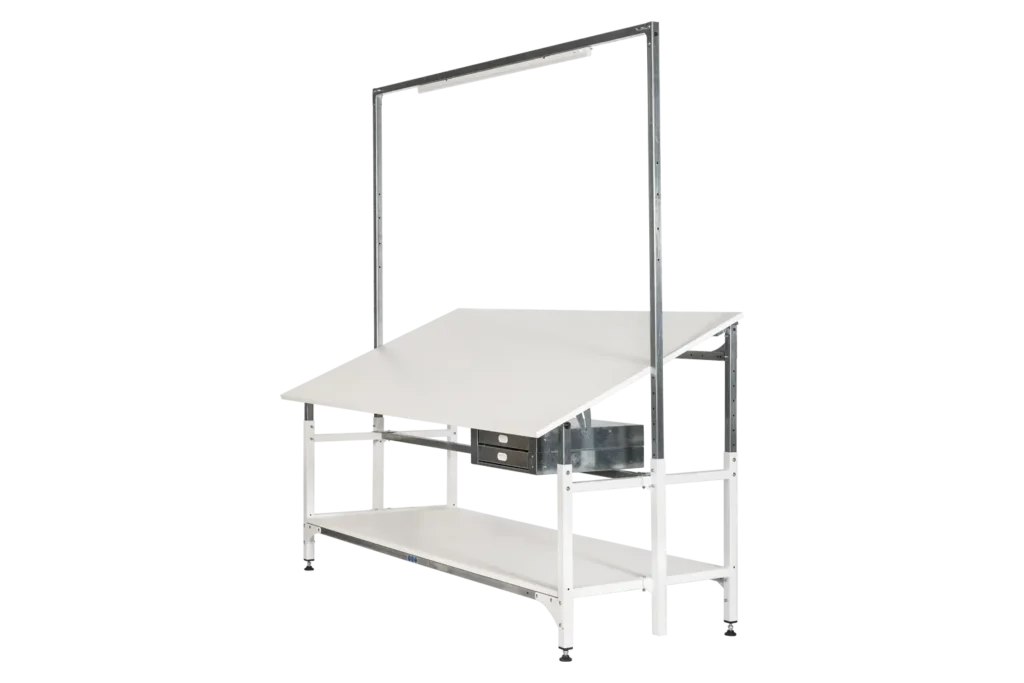

Tools drawer, double or single, attached directly to the table structure and can be positioned on the left or right side. It is excellent for storing tools used by the operator. It is possible to install the key locking system.

Customise your table with dedicated accessories.

If I have specific requests, is it possible to customise the work table?

We are a manufacturer, and it is possible request a custom-made work table.

Some already realised examples of customised work tables are:

Table with inclined top and rear tube for storing a roll of material and unrolling it directly on the top. Made for the modelling department.
Table with wheels to move and position it effortlessly in the workshop.

Check out the custom-made factory fittings products category for more details and information on the models already built.
