Roll
Trolley

The roll trolley is a classic but sophisticated trolley, mainly dedicated to the handling of rolls of fabric or synthetics like microfibre, leatherboard and similar in leather processing factories, such as leather goods or cutting. It is ideal in all kinds of warehouse and production tasks for handling rolls of leatherworks, microfibre and fabric.

The asymmetrical structure makes it even more compact and takes up very little space in the workshop. Handling is ensured by the anti-thread wheels with brakes.

The ideal position, e.g. in leather goods, is next to the traveling head press machine or CAD cutting centre.

Characteristics

Handling rolls
up to 25 kg

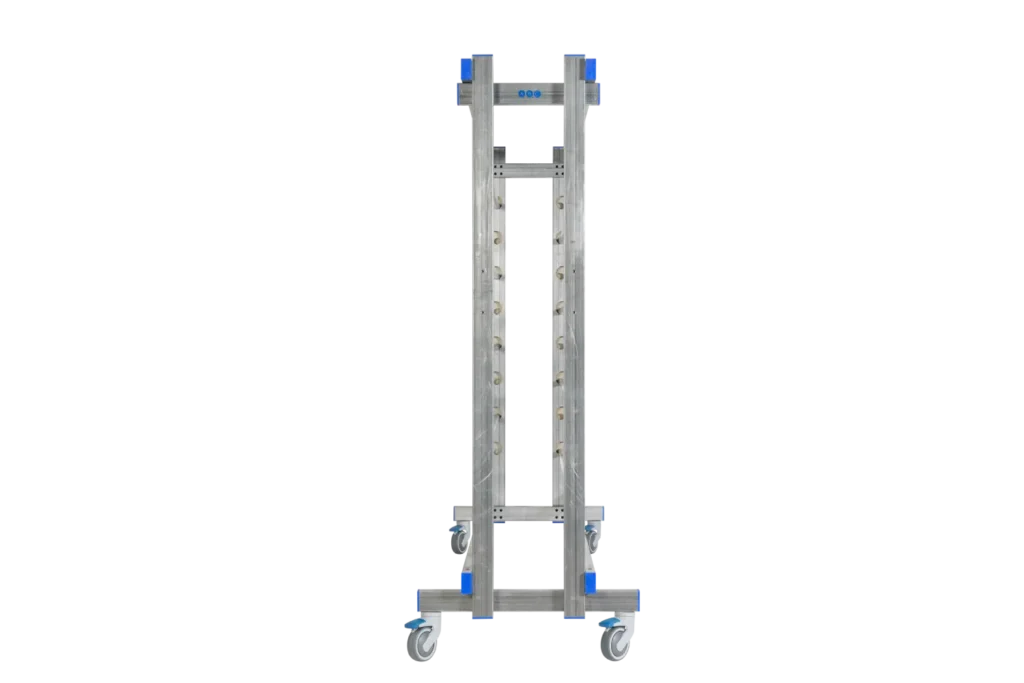

Asymmetrical
structure

Customisable
tube position

Can be
custom-made

roll-trolley-leather-goods

Where is the horizontal cabinet used?

The roll trolley is used in companies that working leather such as:

  • Leather goods companies, such as for the creation of bags and belts
  • Small leather goods, such as for making wallets and watch straps
  • Saddlery, both automotive and riding

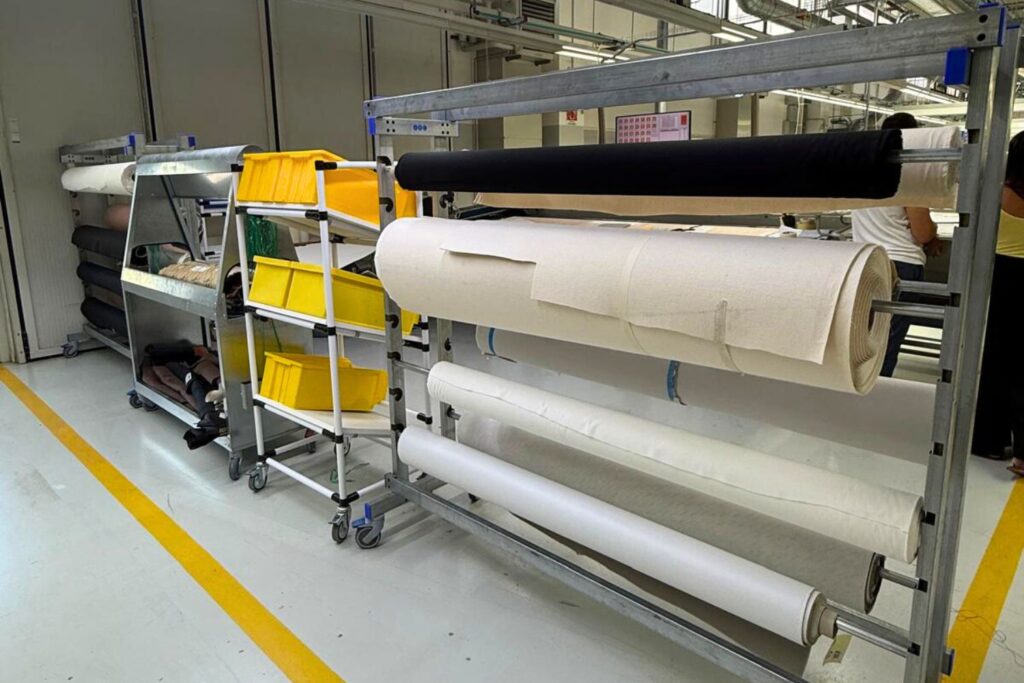

  • Shoe

to handle reinforcing materials such as salpa or reinforcements.

It is also used in textile factories to handle fabric rolls in the department.

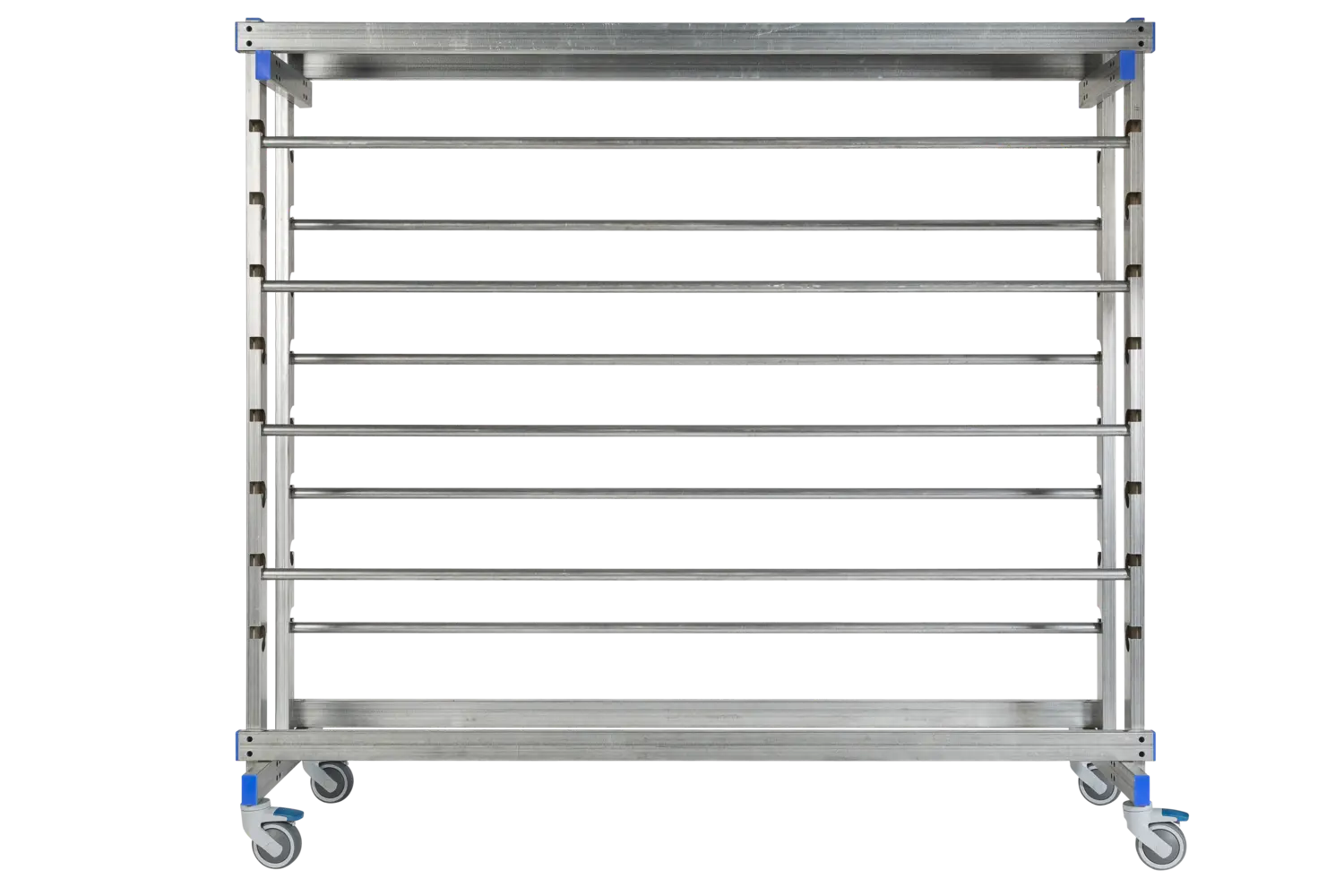

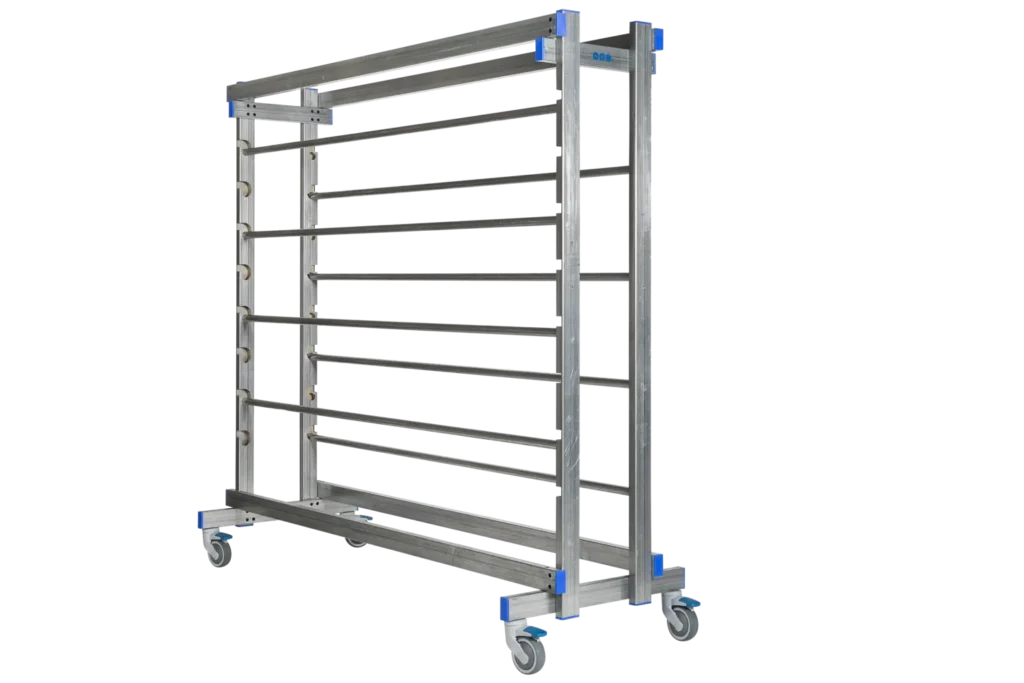

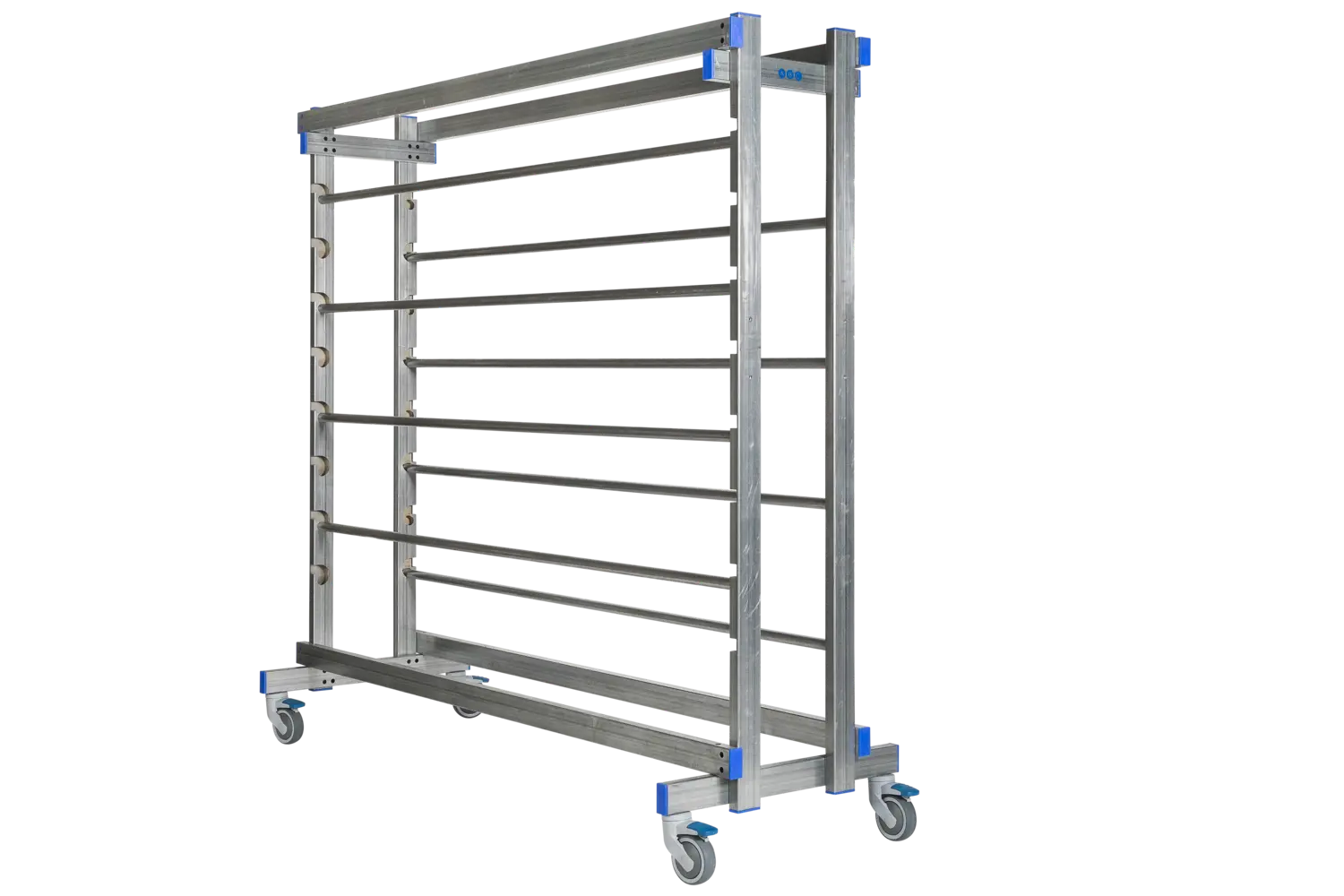

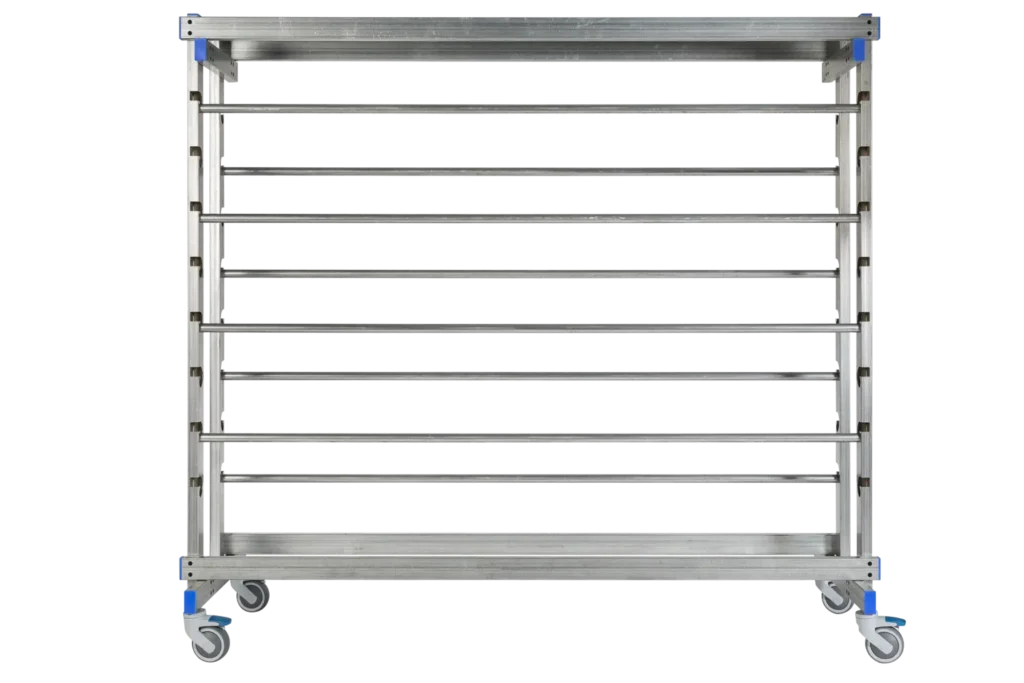

Materials and dimensions of the roll trolley

Our roll trolley is made of galvanised steel and equipped with anti-wire wheels with brakes for comfortable handling throughout the laboratory. The narrow design allows easy manoeuvrability in the halls in the department.

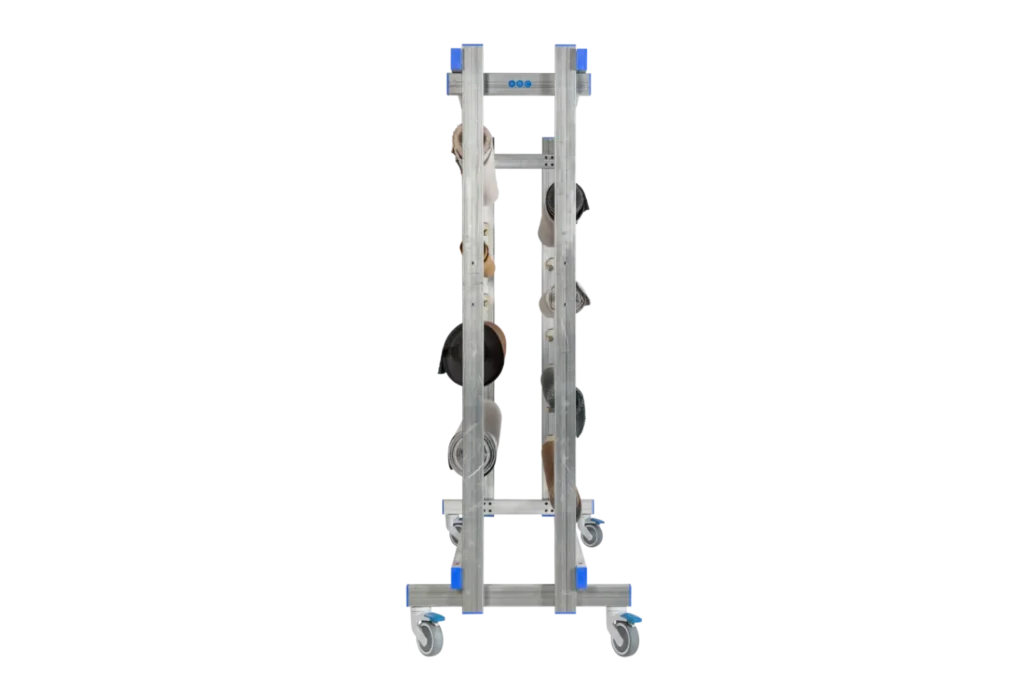

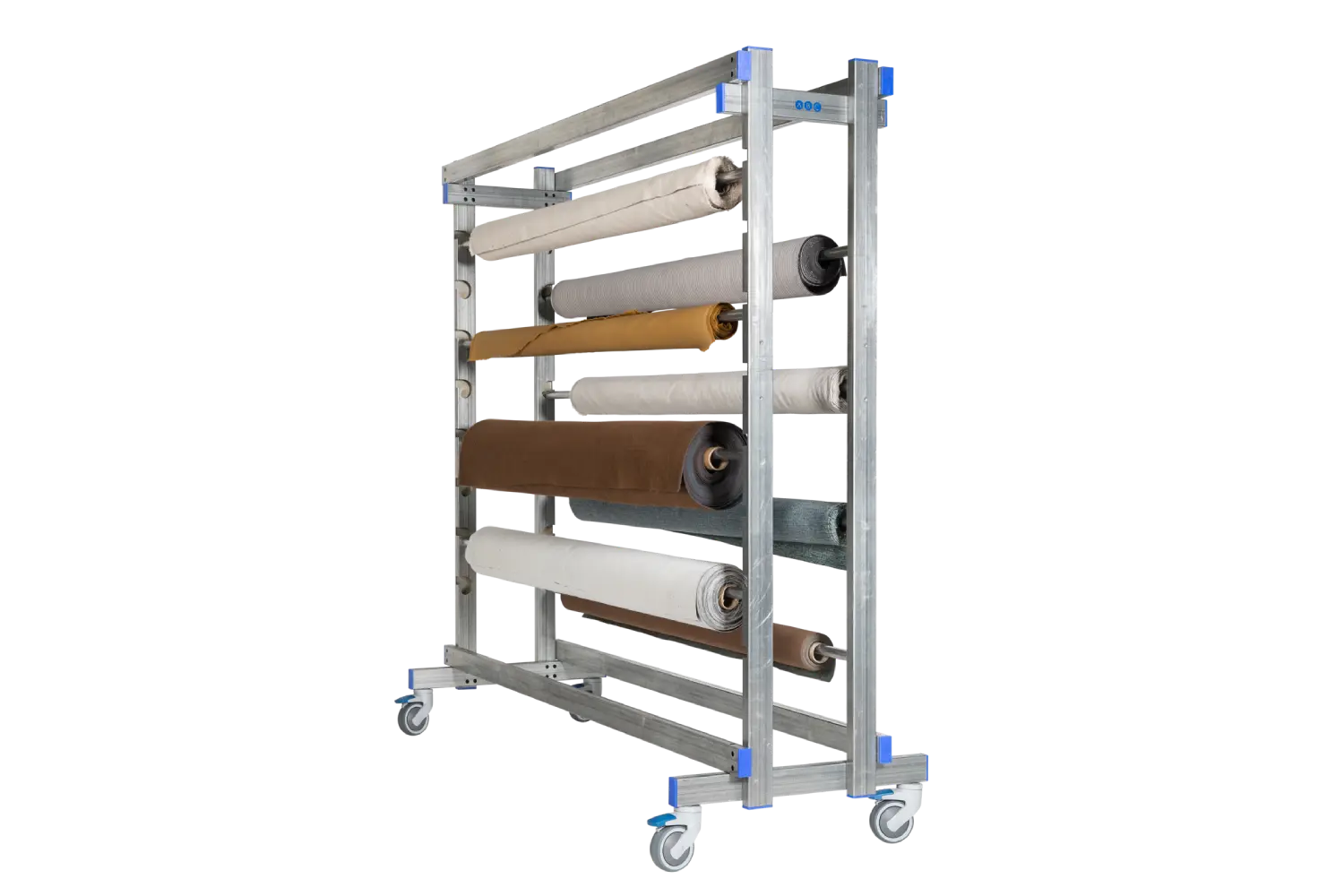

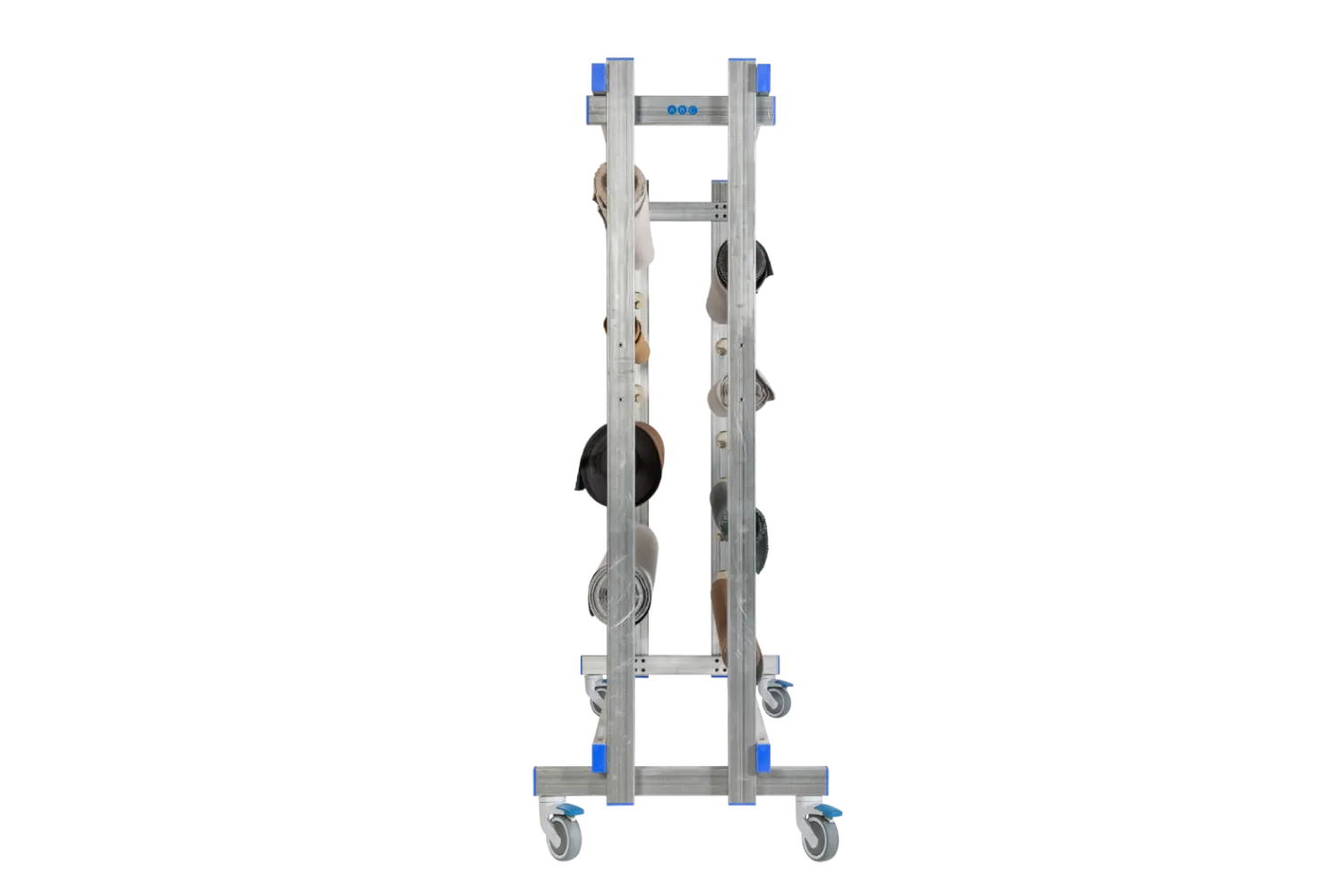

The cart is equipped with 8 steel tubes arranged on 2 sides asymmetrically to facilitate insertion and avoid contrasts between rolls.

The standard capacity is 8 rolls and the overall capacity of the trolley is 200 kg.

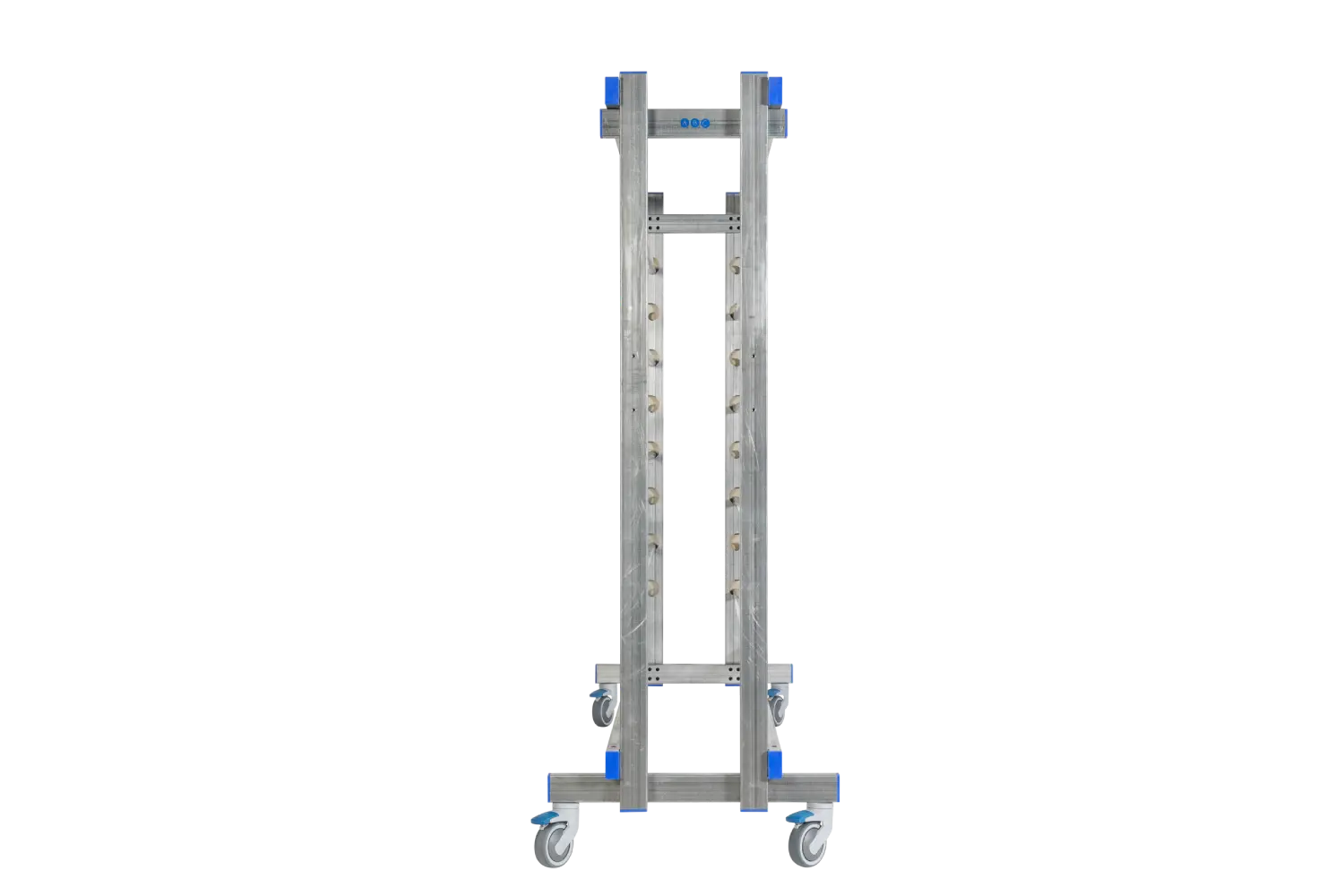

The roll trolley is 171 cm high to ensure the safety of the operator when the rolls are load and during handling. It is only 61 cm wide and 167 cm long (see product data sheet).

It is supplied in assembly kit to facilitate worldwide logistics.

roll-trolley
cutting - Vigevano - Italy

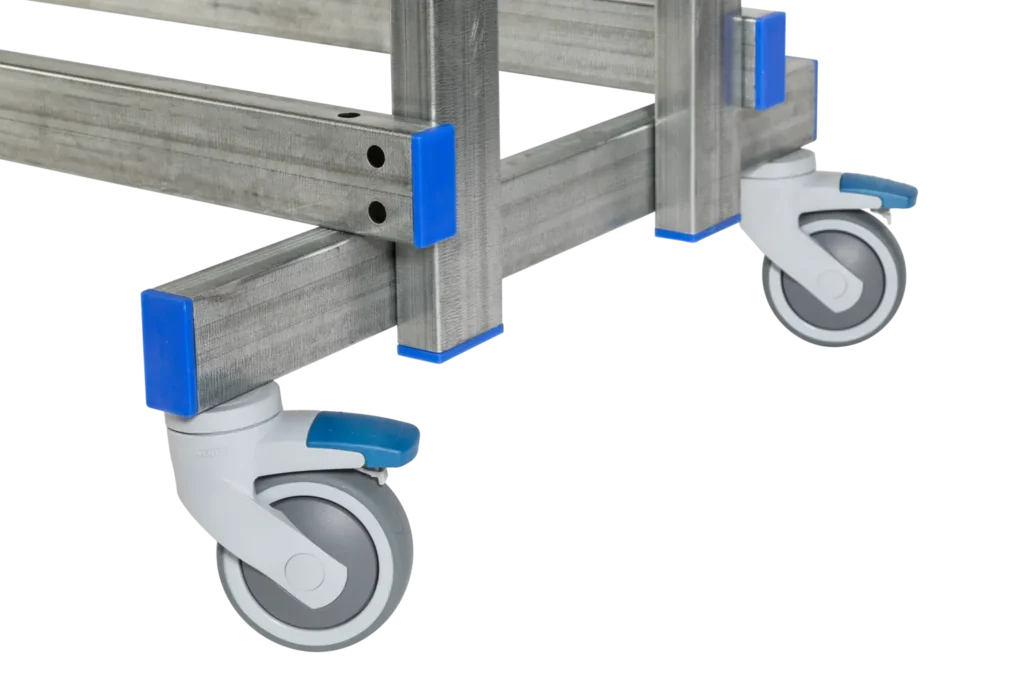

kit-wheels-roll-trolley

The best wheels for you

We specifically selected the wheels for every trolley.
Characteristics:

  • anti-thread
  • rolling brake
  • double ball bearing swivel head
  • high grade synthetic material
  • non-marking thermoplastic rubber tread

Advantages

ERGONOMIC TROLLEY

Graspable from both sides

NARROW STRUCTURE

Rolls handling in a small space

CERTIFIED WHEELS

Made of rubber, anti-thread, with brake (ISO 11228)

Accessories dedicated to the roll trolley

If you want to handle more than 8 bobbins on the roll trolley, you can include the additional kit consisting of a tube and two brackets. All the parts necessary for assembly are included.

Make the roll cart suitable for every need and type of material handled.

roll-trolley-cutting-machine-laser
belt factory - Bagno a Ripoli (FI) - Italy
roll-trolley-for-CAD-cutting-machine

It is possible to customise the roll trolley?

If you have specific requirements, we are a manufacturer and can customise the dimensions of the roll trolley on request.

Some examples of custom-made roll trolley are those to be positioned next to the laser cutting machine, such as, for example, the roll trolley for automatic cutting machines with 4 available tubes, one of which is higher for rolls of cartene, or the multiple roll trolley for automatic cutting machines of 3 metres to handle one or two rolls in line at the same time.

Another example realised is the upholstery roll trolley customised in size to handle rolls larger than standard, such as those used in the automotive sector for car interiors, nautical for yacht interiors and furniture.

Check out the custom-made work trolleys category to find out all the details and additional information on those already made.

Product Data

Roll trolley

CodeL x W x H
PR_K_02cm 171 x 61 x 167

Max. load trolley: 200 kg

Accessories

  • PR_TS_02

    Additional Tube and Brackets for Roll Trolley

With the aim of continuous improvement, CBC SRL reserves the right to modify at any time and without notice, the technical, functional and aesthetic characteristics of the products.
