Trolleys
with Shelves

The work trolley is ideal for handling semi-finished products but also the finished product in the factory.

It can be used in all types of activities such as in leather goods, belt and shoe factories. Useful for every phase of the production process up to quality control, packaging and labeling. It is very practical as a work support to move the cut pieces to be sewn in the assembly department or in the quality control department.

The combination of shelves and sides, based on the use, makes the work trolley suitable for all needs.

Advantages

Keep production in order
Versatility of use for the operator, wide range of trolleys
Easily handle and store semi-finished or finished products in the factory before shipping

Our peculiarity is to offer the right trolley for each process

The shelves trolley is the same but different for everyone. We simply offer a wide choice based on what you want to move in the department.

The number of shelves is almost always associated with the posture of the operator:

Two shelves: suitable for those who work seated
Three shelves: suitable for those who work at the work table
Four shelves: suitable for storage, before quality control

The trolley is sturdy and durable.

Materials and dimensions

All our trolleys are made of galvanized steel, equipped with high quality castors for comfortable movement. The narrow structure allows for easy maneuverability through the aisles in the department.

The trolleys can be both closed and open sides.

The minimum height is 80 cm (two shelves), up to a maximum of 144 cm (four shelves).

Discover the full range of our works trolleys (see product data sheets)

It is supplied in an assembly kit to facilitate logistics all over the world.

The castor selected for you

For each cart we have taken care of the choice of the castor:

parafili
swivel on double row of balls
high quality plastic material
non-marking thermoplastic rubber tread

What if I need a special shelves trolley?

We are manufacturers and on request it is possible to customize the dimensions or the number of shelves of the trolley.

Product Data Sheet

Shoe Factory

Previous image

Next image

Tray of cm 87 x 33

Long side open

Code	no. shelves	L x W x H
CL_SC_C2_K_02	2	cm 87 x 33 x 80
CL_SC_C3_K_02	3	cm 87 x 33 x 112
CL_SC_C4_K_02	4	cm 87 x 33 x 144

Max. load trolley: 200 kg

Tray of cm 112 x 33

Long side open

Code	no. shelves	L x W x H
CL_SN_C2_K_02	2	cm 112 x 33 x 80
CL_SN_C3_K_02	3	cm 112 x 33 x 112
CL_SN_C4_K_02	4	cm 112 x 33 x 144

Max. load trolley: 200 kg

Previous image

Next image

Leather Goods

Previous image

Next image

Tray of cm 87 x 52

Long side open

Code	no. shelves	L x W x H
CL_BC_C2_K_02	2	cm 87 x 52 x 80

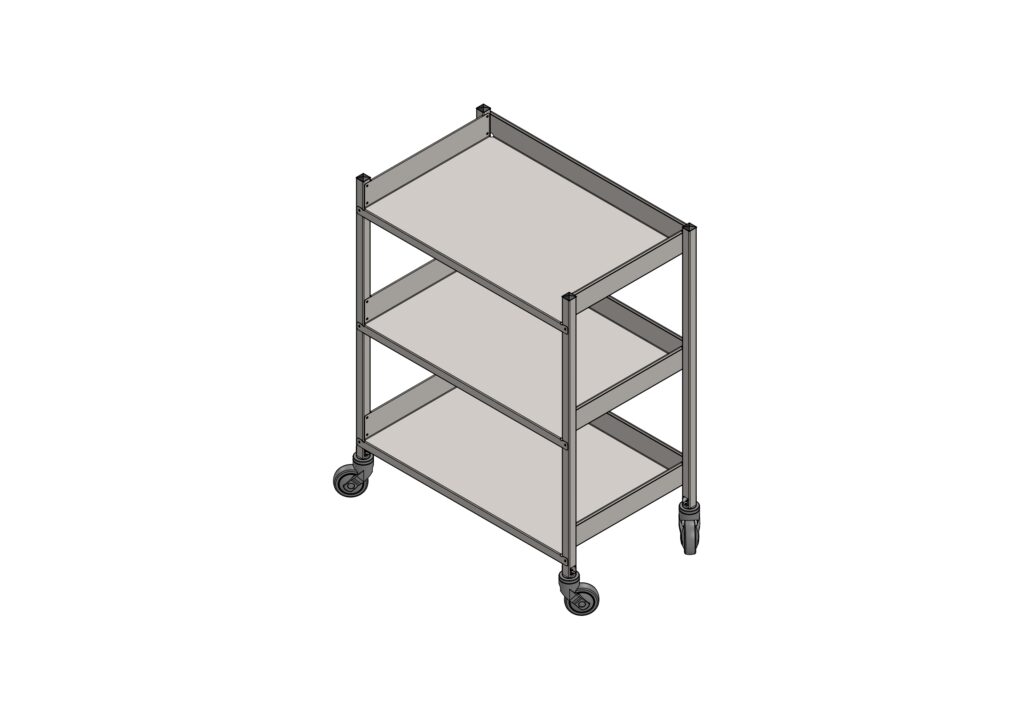

CL_BC_C3_K_02	3	cm 87 x 52 x 112
CL_BC_C4_K_02	4	cm 87 x 52 x 144

Max. load trolley: 200 kg

Tray of cm 87 x 47

Closed

Code	no. shelves	L x W x H

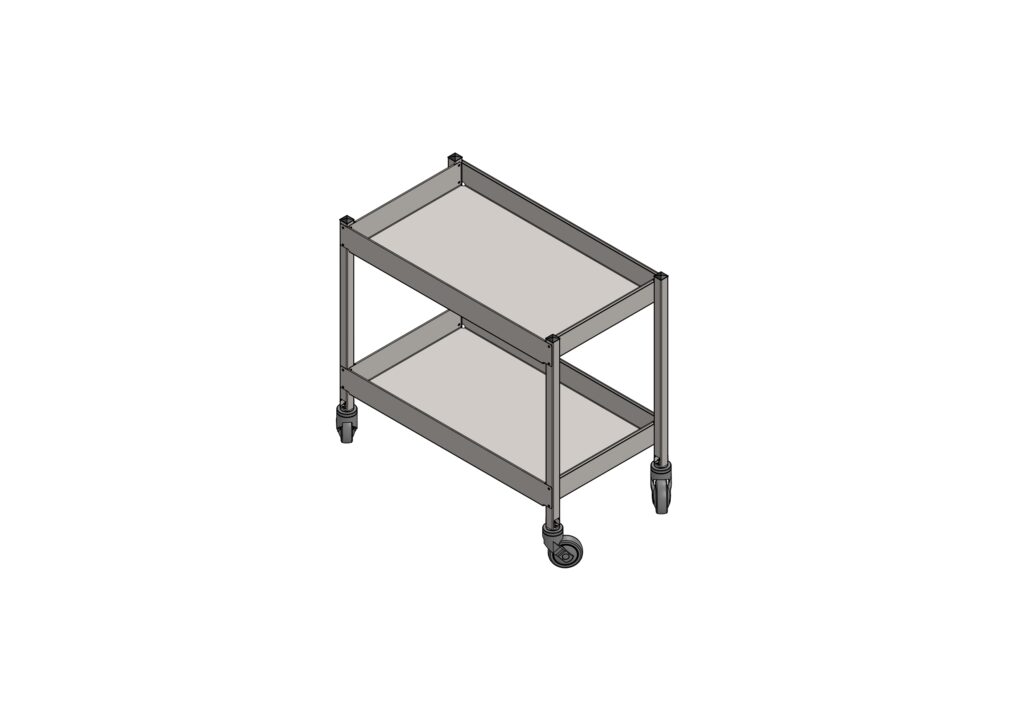

CL_BC_O2_K_02	2	cm 87 x 47 x 80

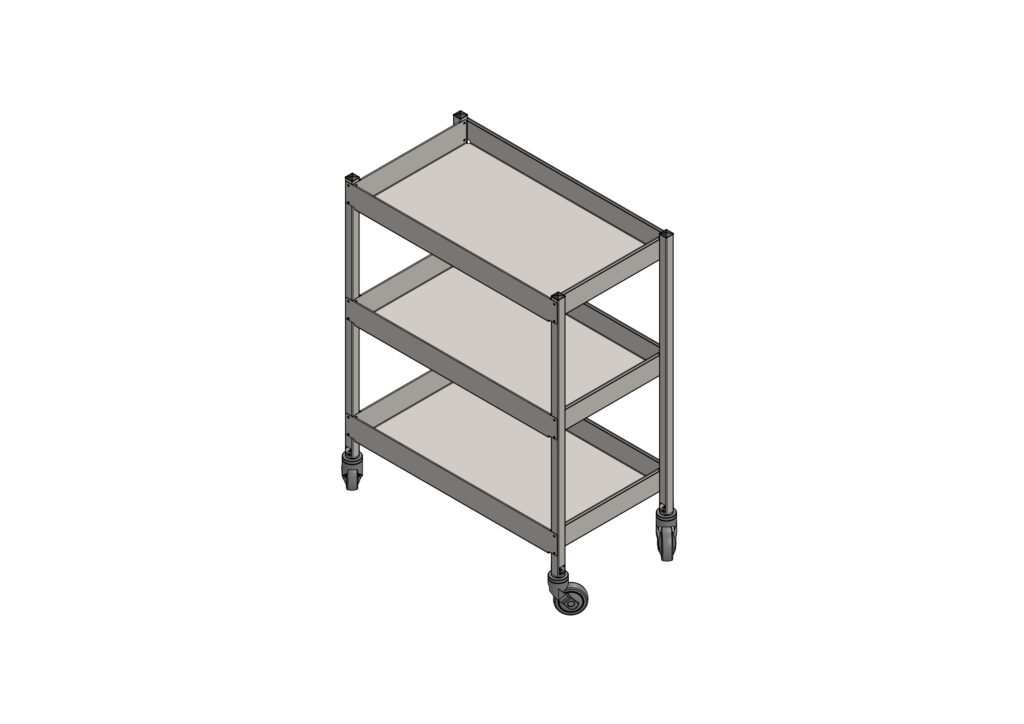

CL_BC_O3_K_02	3	cm 87 x 47 x 112

Max. load trolley: 200 kg

Tray of cm 112 x 52

Long side open

Codice	no. shelves	L x W x H

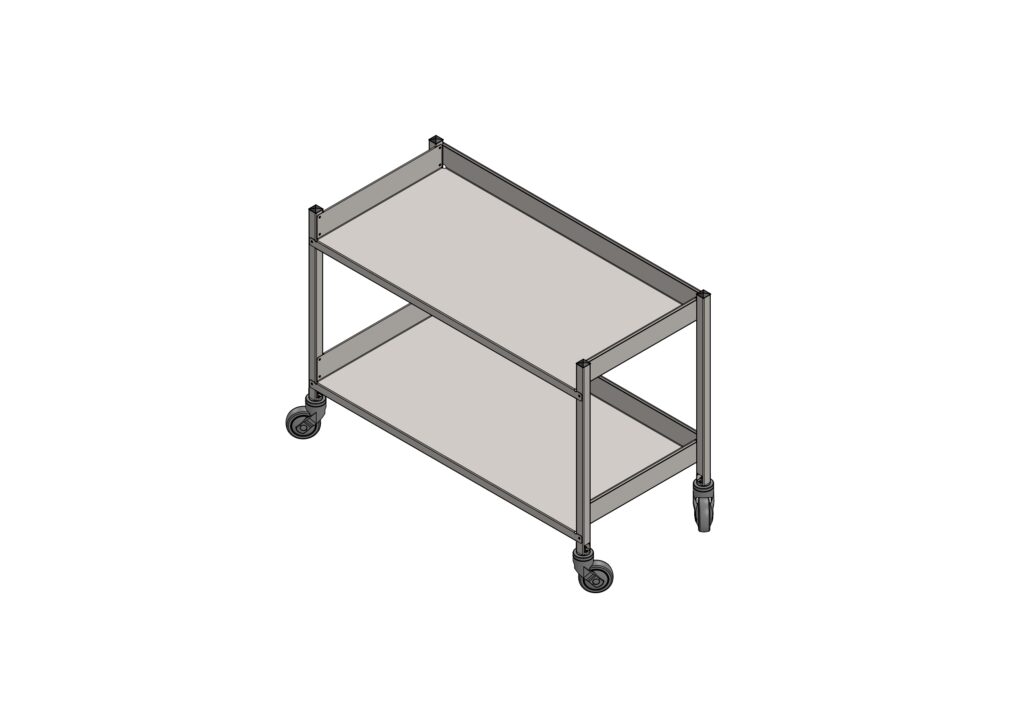

CL_BN_C2_K_02	2	cm 112 x 52 x 80
CL_BN_C3_K_02	3	cm 112 x 52 x 112
CL_BN_C4_K_02	4	cm 112 x 52 x 144
CL_BN_C5_K_02	5	cm 112 x 52 x 164

Max. load trolley: 200 kg

Tray of cm 112 x 47

Closed

Code	no. shelves	L x W x H
CL_BN_O2_K_02	2	cm 112 x 47 x 80
CL_BN_O3_K_02	3	cm 112 x 47 x 112

Max. load trolley: 200 kg

Previous image

Next image

Belt

Previous image

Next image

Tray of cm 135 x 53

Short side open

Codice	n. piani	L x W x H
CL_BL_U2_K_02	2	cm 135 x 53 x 80
CL_BL_U3_K_02	3	cm 135 x 53 x 112

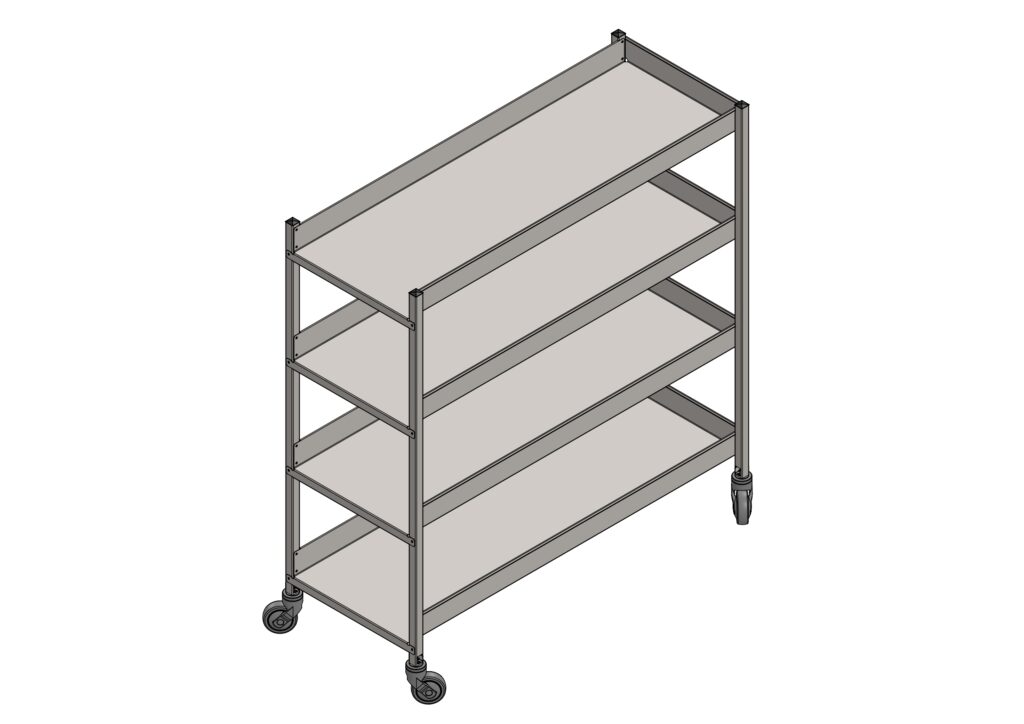

CL_BL_U4_K_02	4	cm 135 x 53 x 144

Max. load trolley: 200 kg

With the aim of continuous improvement, CBC SRL reserves the right to modify at any time and without notice, the technical, functional and aesthetic characteristics of the products.
